Pilz
541010
PSEN cs3.1p /PSEN cs3.1 1unit
Request a Quote
Image copyright: Pilz

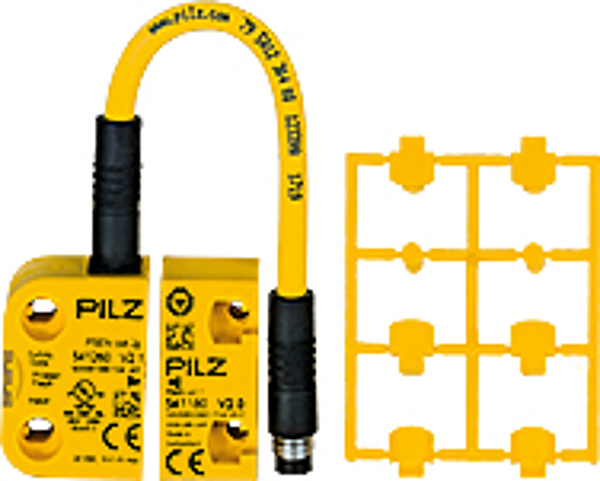

Pilz 541010
PSEN cs3.1p /PSEN cs3.1 1unit
RFiD safety switch 2 safe semiconductor outputs, 8-pin M8 connector,, one direction of actuation IP67; operating distance 11 mm, Sao = 8 mm,. Sar = 20 mm; PU = 1 piece coded switch with actuator.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV, FCC, IC |
| Sensor principle:: | Transponder |
| Type of coding:: | Coded |
| Number of OSSD outputs:: | 2 |
| Number of inputs:: | 2 |
| Connection type:: | M8, 8pol. male |
| Supply voltage (V):: | 24,0 |
| Supply voltage type:: | DC |
| Power consumption DC:: | 1.0 W |
| Assured switching distance:: | 8.0 mm |
| Assured release distance:: | 20.0 mm |
| Protection type, housing:: | IP6K9K |
| Width dimension:: | 26.0 mm |
| Height dimension:: | 37.0 mm |
| Depth dimension:: | 18.0 mm |
| Gross weight:: | 70 g |
| Net weight:: | 50 g |
| Ambient temperature:: | -25 - 70 °C |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
