Pilz
540100
PSEN cs2.1p / PSEN cs2.1 1Unit
Request a Quote
Image copyright: Pilz

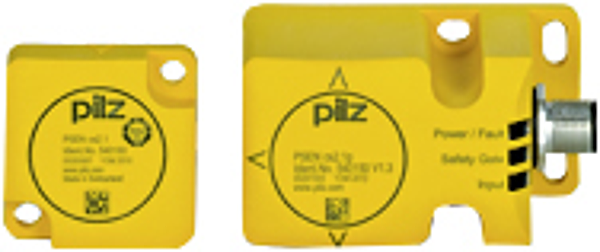

Pilz 540100
PSEN cs2.1p / PSEN cs2.1 1Unit
RFiD safety switch 2 safe semiconductor outputs, 8-pin M12 connector,, four directions of actuation IP67, operating distance 21 mm, Sao = 15, mm, Sar = 40 mm, PU = 1 piece fully coded switch with actuator A total, of 8 learning procedures are possible.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV, FCC, IC |
| Sensor principle:: | Transponder |
| Type of coding:: | Fully coded |
| Number of OSSD outputs:: | 2 |
| Number of inputs:: | 2 |
| Connection type:: | M12, 8pol. male |
| Supply voltage (V):: | 24,0 |
| Supply voltage type:: | DC |
| Power consumption DC:: | 2.0 W |
| Assured switching distance:: | 15.0 mm |
| Assured release distance:: | 40.0 mm |
| Protection type, housing:: | IP67 |
| Width dimension:: | 40.0 mm |
| Height dimension:: | 75.0 mm |
| Depth dimension:: | 40.0 mm |
| Gross weight:: | 182 g |
| Net weight:: | 150 g |
| Ambient temperature:: | -25 - 70 °C |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
