Product
Pilz
506226
PSEN ma1.3p-20/PSEN ma1.3-08/8mm/1unit
Request a Quote
Image copyright: Pilz

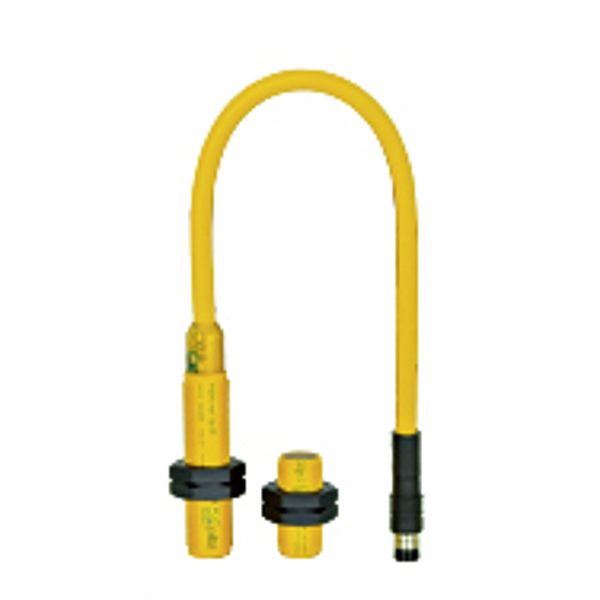

Pilz 506226
PSEN ma1.3p-20/PSEN ma1.3-08/8mm/1unit
Magnetic safety switch 3 N/O, M8 male connector, round M12 design IP67,, operating distance 8 mm, PU = 1 piece with M12 actuator.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Housing material:: | PBT |
| Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV, ECOLAB |
| Sensor principle:: | magnetic |
| Number of N/O:: | 3 |
| Connection type:: | M8, 8pol. male |
| Switching voltage:: | 24 V |
| Type of switching voltage:: | DC |
| Assured switching distance:: | 8.0 mm |
| Assured release distance:: | 15.0 mm |
| Protection type, housing:: | IP65 |
| Status indicator:: | With LED |
| Design:: | Round |
| Width dimension:: | 12.0 mm |
| Height dimension:: | 11.0 mm |
| Depth dimension:: | 59.1 mm |
| Gross weight:: | 44 g |
| Net weight:: | 30 g |
| Ambient temperature:: | -25 - 70 °C |
| Operating modes:: | Single connection |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
