Product
Pilz
504222
PSEN 1.1p-22/PSEN 1.1-20/8mm/ix1/ 1unit
Request a Quote

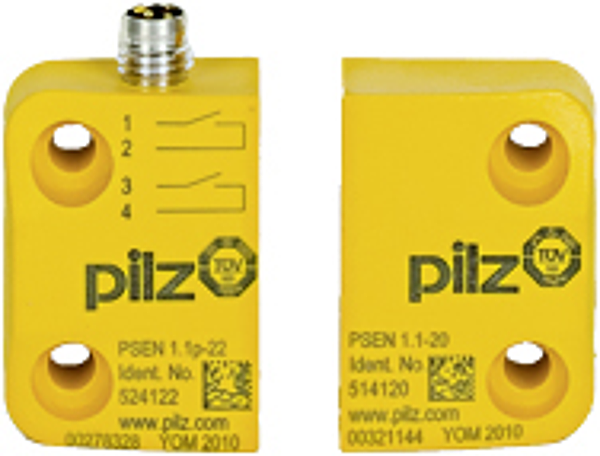

Image copyright: Pilz
Pilz 504222
PSEN 1.1p-22/PSEN 1.1-20/8mm/ix1/ 1unit
Magnetic safety switch 2 N/O, 4-pin M8 male connector, square design. Height design 13 mm IP67, operating distance 8mm, for applications, with PSEN ix1 PU = 1 piece with actuator.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Housing material:: | PBT |
| Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV |
| Sensor principle:: | magnetic |
| Number of N/O:: | 2 |
| Connection type:: | M8, 4pol. male |
| Switching voltage:: | 24 V |
| Type of switching voltage:: | DC |
| Assured switching distance:: | 8.0 mm |
| Assured release distance:: | 26.0 mm |
| Protection type, housing:: | IP65, IP67 |
| Status indicator:: | Without LED |
| Design:: | square |
| Width dimension:: | 26.0 mm |
| Height dimension:: | 36.0 mm |
| Depth dimension:: | 13.0 mm |
| Gross weight:: | 44 g |
| Net weight:: | 36 g |
| Ambient temperature:: | -10 - 55 °C |
| Operating modes:: | Series connection |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
