502250

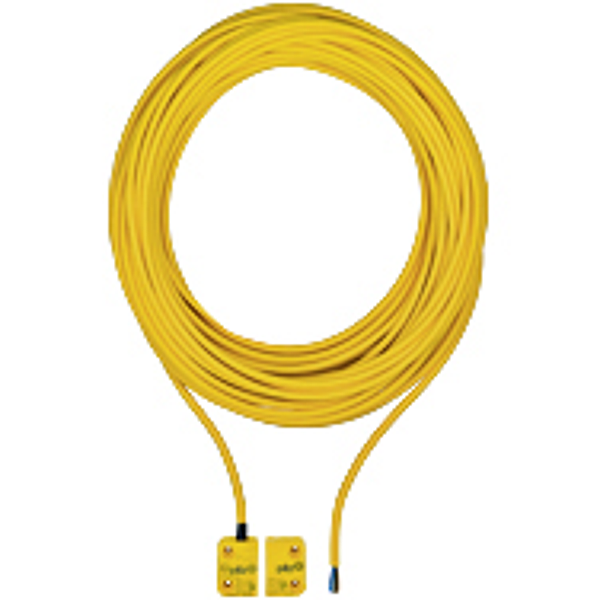

PSEN 2.1b-26/PSEN2.1-20/8mm/10m/EX/1unit
Magnetic safety switch 1NO/1NC, square design, IP6K9K, operating, distance 8 mm, height design 13 mm PU = 1 piece with actuator, with 10, m cable (PUR), ATEX approval.
Certifications:: | CE, cULus Listed, EAC (Eurasian), ATEX, TÜV, ECOLAB, electrosuisse |
Sensor principle:: | magnetic |
Number of N/O:: | 1 |
Number of N/C:: | 1 |
Max. current of safe contacts:: | 0.01 A |
Connection type:: | 10m Kabel |
Switching voltage:: | 24 V |
Type of switching voltage:: | DC |
Assured switching distance:: | 8.0 mm |
Assured release distance:: | 26.0 mm |
Protection type, housing:: | IP67, IP69 |
Status indicator:: | Without LED |
Design:: | square |
Width dimension:: | 26.0 mm |
Height dimension:: | 36.0 mm |
Depth dimension:: | 13.0 mm |
Gross weight:: | 360 g |
Net weight:: | 340 g |
Ambient temperature:: | -25 - 55 °C |
Operating modes:: | Series connection |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
