502220
PSEN 2.1p-20/PSEN 2.1-20 /8mm/1unit

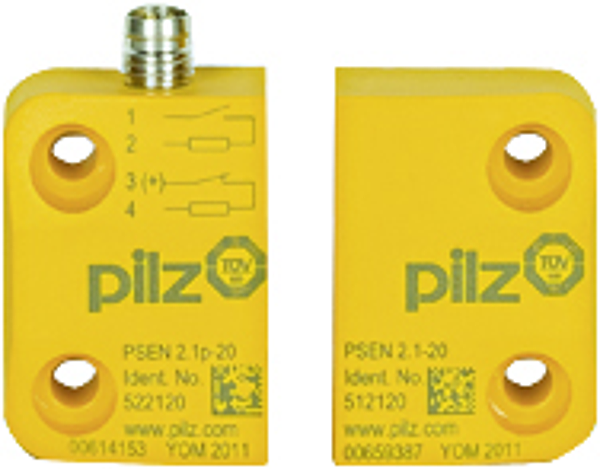

Magnetic safety switch 1NO/1NC, 4-pin M8 male connector, square design. IP67, operating distance 8 mm, height design 13 mm PU = 1 piece with, actuator.
Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV |
Sensor principle:: | magnetic |
Number of N/O:: | 1 |
Number of N/C:: | 1 |
Max. current of safe contacts:: | 0.01 A |
Connection type:: | M8, 4pol. male |
Switching voltage:: | 24 V |
Type of switching voltage:: | DC |
Assured switching distance:: | 8.0 mm |
Assured release distance:: | 26.0 mm |
Protection type, housing:: | IP65, IP67 |
Status indicator:: | Without LED |
Design:: | square |
Width dimension:: | 26.0 mm |
Height dimension:: | 36.0 mm |
Depth dimension:: | 13.0 mm |
Gross weight:: | 41 g |
Net weight:: | 35 g |
Ambient temperature:: | -25 - 70 °C |
Operating modes:: | Series connection |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
