Product
Pilz
400535
PIT es5u
Request a Quote
Image copyright: Pilz
Pilz 400535
PIT es5u

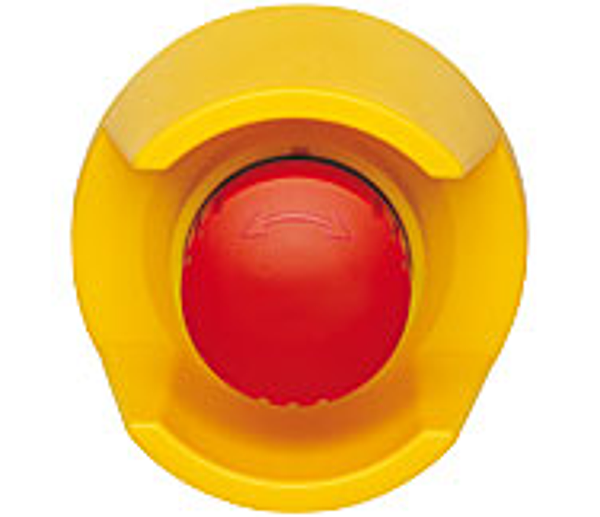

PITestop E-STOP pushbutton IP65, with protective collar, without logo,, mounting hole: 22.3 mm.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV |
| Product standard:: | EN 60947-5-5, EN ISO 13850 |
| Release type:: | Rotational |
| Actuator:: | Pushbutton |
| Colour button:: | Red |
| Protective collar:: | Yes |
| Protection type, housing:: | IP65 |
| Mounting type:: | Front panel installation |
| Diameter of mounting cut-out:: | 22.3 mm |
| Width dimension:: | 70.0 mm |
| Height dimension:: | 60.0 mm |
| Gross weight:: | 65 g |
| Net weight:: | 52 g |
| Ambient temperature:: | -30 - 70 °C |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
