Product
Pilz
400511
PIT es Set3.2: es3.11 / 2 n/c 1 n/o
Request a Quote
Image copyright: Pilz

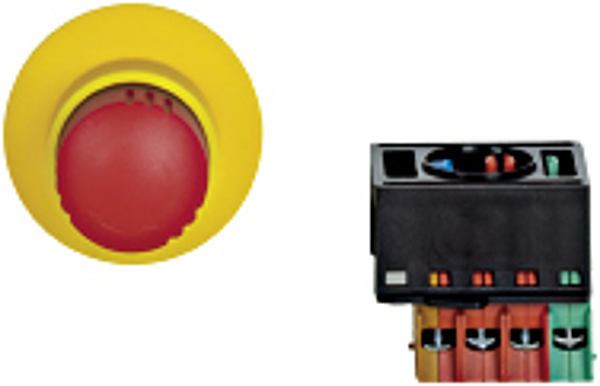

Pilz 400511
PIT es Set3.2: es3.11 / 2 n/c 1 n/o
PITestop E-STOP/contact block set consisting of E-STOP pushbutton with, contact block, 2 N/C, 1 N/O, terminals of screw type.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | cULus Listed, TÜV |
| Product standard:: | EN 60947-5-1 |
| Release type:: | Rotational |
| Actuator:: | Pushbutton |
| Printing symbol:: | None |
| Colour button:: | Red |
| Protective collar:: | No |
| Self-monitored:: | Yes |
| Terminal type:: | Screw terminal |
| Number of N/C:: | 2 |
| Number of N/O:: | 1 |
| Protection type, housing:: | IP65 |
| Mounting type:: | Front panel installation |
| Diameter of mounting cut-out:: | 22.3 mm |
| Diameter:: | 55.0 mm |
| Width dimension:: | 45.3 mm |
| Height dimension:: | 41.5 mm |
| Depth dimension:: | 43.6 mm |
| Gross weight:: | 98 g |
| Net weight:: | 93 g |
| Ambient temperature:: | -30 - 70 °C |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
