Pilz
400448
PIT es Set1s-5cs
Request a Quote
Image copyright: Pilz

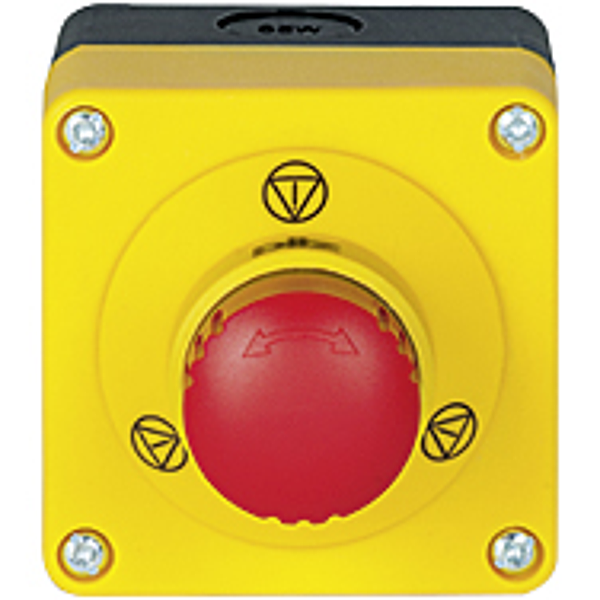

Pilz 400448
PIT es Set1s-5cs
PITestop E-STOP/contact block incl. surface mount housing,, set consisting of E-STOP pushbutton with E-STOP symbol and with logo, and contact block with monitoring. 2 N/C, with spring-loaded terminals.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE |
| Product standard:: | EN 60947-5-5, EN ISO 13850 |
| Release type:: | Rotational |
| Actuator:: | Pushbutton |
| Printing symbol:: | Pilz logo and E-STOP symbol |
| Colour button:: | Red |
| Protective collar:: | No |
| Self-monitored:: | Yes |
| Terminal type:: | Spring-loaded terminal |
| Number of N/C:: | 2 |
| Protection type, housing:: | IP65 |
| Mounting type:: | Wall assembly |
| Width dimension:: | 103.0 mm |
| Height dimension:: | 72.0 mm |
| Depth dimension:: | 72.0 mm |
| Gross weight:: | 184 g |
| Net weight:: | 155 g |
| Ambient temperature:: | -25 - 55 °C |
