Product
Pilz
400442
PIT es Set7u-5c
Request a Quote
Image copyright: Pilz
Pilz 400442
PIT es Set7u-5c

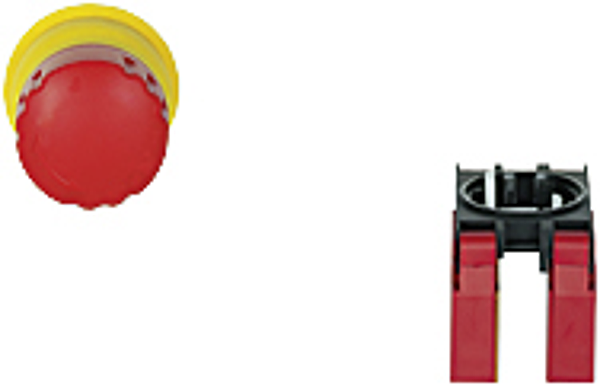

PITestop E-STOP/contact block set consisting of E-STOP pushbutton, hygienic range) and contact block with monitoring. 2 N/C, with, spring-loaded terminals.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE |
| Product standard:: | EN 60947-5-5, EN ISO 13850 |
| Release type:: | Rotational |
| Actuator:: | Pushbutton |
| Colour button:: | Red |
| Protective collar:: | No |
| Self-monitored:: | Yes |
| Terminal type:: | Spring-loaded terminal |
| Number of N/C:: | 2 |
| Protection type, housing:: | IP69K |
| Mounting type:: | Front panel installation |
| Diameter of mounting cut-out:: | 22.3 mm |
| Width dimension:: | 44.0 mm |
| Height dimension:: | 92.0 mm |
| Gross weight:: | 91 g |
| Net weight:: | 56 g |
| Ambient temperature:: | -25 - 55 °C |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
