Pilz 400441
PIT es Set7u-5

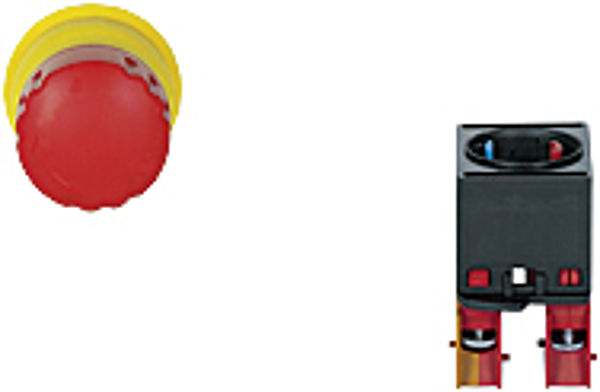

PITestop E-STOP/contact block set consisting of E-STOP pushbutton, hygienic range) and contact block with monitoring. 2 N/C, terminals, of screw type.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE |
| Product standard:: | EN 60947-5-5, EN ISO 13850 |
| Release type:: | Rotational |
| Actuator:: | Pushbutton |
| Colour button:: | Red |
| Protective collar:: | No |
| Self-monitored:: | Yes |
| Terminal type:: | Screw terminal |
| Number of N/C:: | 2 |
| Protection type, housing:: | IP69K |
| Mounting type:: | Front panel installation |
| Diameter of mounting cut-out:: | 22.3 mm |
| Width dimension:: | 50.0 mm |
| Height dimension:: | 100.0 mm |
| Gross weight:: | 97 g |
| Net weight:: | 62 g |
| Ambient temperature:: | -30 - 70 °C |
