Product
Pilz
400308
PIT esc6c 2n/c 1n/o
Request a Quote
Image copyright: Pilz
Pilz 400308
PIT esc6c 2n/c 1n/o

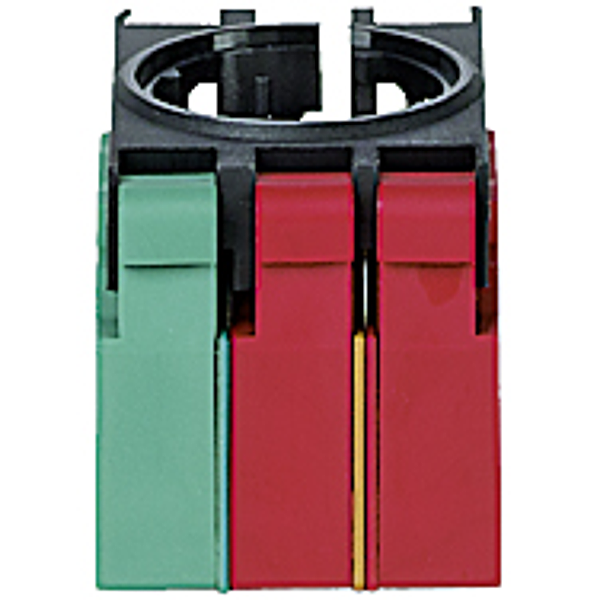

PITestop contact block 1 N/C + 1 N/C with monitoring, 1 N/O, 1 bracket, with spring-loaded terminals.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE |
| Product standard:: | EN 60947-5-5, EN ISO 13850 |
| Terminal type:: | Spring-loaded terminal |
| Self-monitored:: | Yes |
| Number of N/C:: | 2 |
| Number of N/O:: | 1 |
| Max. current at AC15:: | 3.0 A |
| Voltage at AC15:: | 250 V |
| Max. current at DC13 I (6 cycles/min):: | 2.0 A |
| Voltage at DC13:: | 24 V |
| Width dimension:: | 44.5 mm |
| Height dimension:: | 40.0 mm |
| Depth dimension:: | 29.0 mm |
| Gross weight:: | 36 g |
| Net weight:: | 33 g |
| Ambient temperature:: | -25 - 55 °C |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
