Pilz
400112
PIT es2.13 operator illuminated black
Request a Quote
Image copyright: Pilz

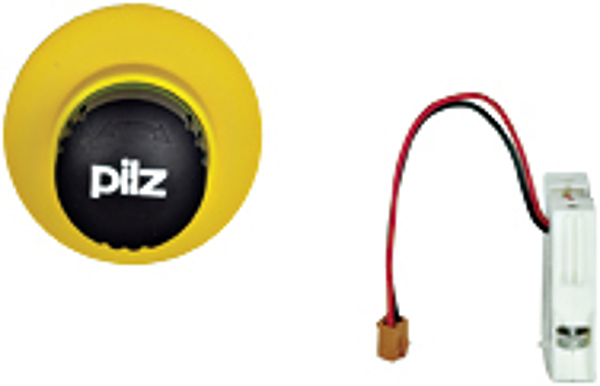

Pilz 400112
PIT es2.13 operator illuminated black
PITestop operating stop pushbutton IP65, LED ring illumination incl., connection module Mounting hole: 22.3 mm.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | cULus Listed, TÜV |
| Product standard:: | EN 60947-5-1 |
| Release type:: | Rotational |
| Actuator:: | Pushbutton |
| Colour button:: | Black |
| Protective collar:: | No |
| Supply voltage (V):: | 12,0 - 30,0 |
| Supply voltage type:: | AC/DC |
| Protection type, housing:: | IP65 |
| Mounting type:: | Front panel installation |
| Diameter of mounting cut-out:: | 22.3 mm |
| Diameter:: | 55.0 mm |
| Height dimension:: | 41.5 mm |
| Gross weight:: | 56 g |
| Net weight:: | 53 g |
| Ambient temperature:: | -30 - 70 °C |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
