Product
Pilz
314225
PSSu E F 2DOR 8-T
Request a Quote
Image copyright: Pilz

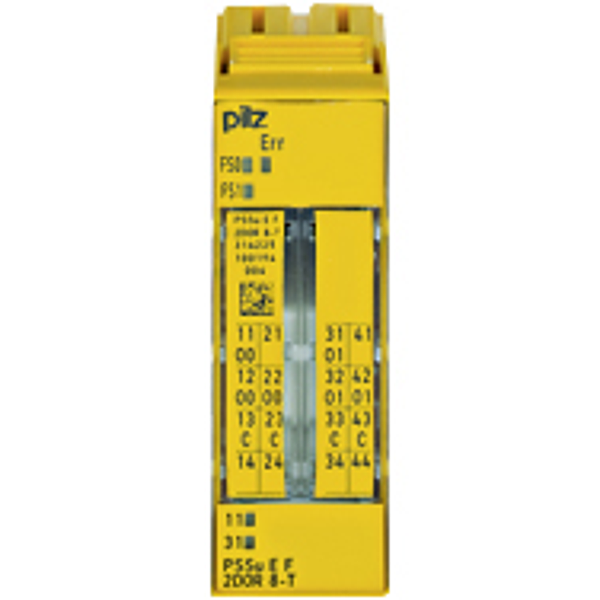

Pilz 314225
PSSu E F 2DOR 8-T
Electronic module digital inputs and outputs, with failsafe function,. 2 relay outputs, potential-free 8 A, ext. temperature.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV, KOSHA |
| Application range:: | Failsafe |
| Number of relay outputs:: | 2 |
| Protection type, housing:: | IP20 |
| Permitted base modules:: | PSSu BP 2/16C-T, PSSu BP 2/16S-T, PSSu BP-C 2/16C-T, PSSu BP-C 2/16S-T |
| Width dimension:: | 25.2 mm |
| Height dimension:: | 76.0 mm |
| Depth dimension:: | 60.2 mm |
| Gross weight:: | 100 g |
| Net weight:: | 91 g |
| Ambient temperature:: | -40 - 70 °C |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
