Product
Pilz
312435
PSSu K F FCU
Request a Quote

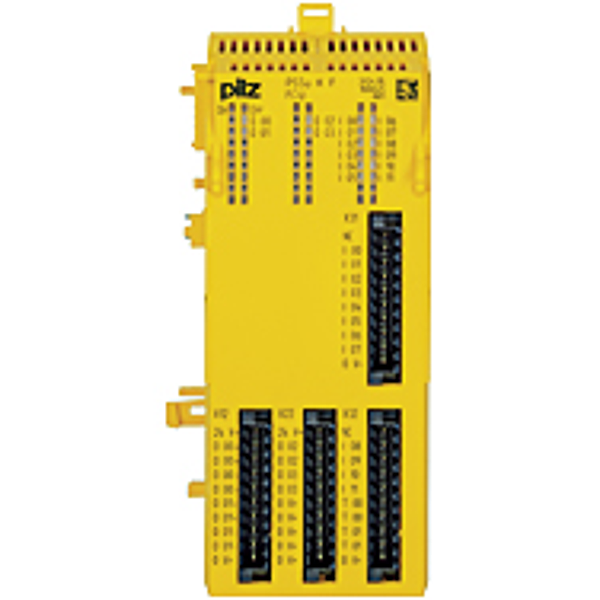

Image copyright: Pilz
Pilz 312435
PSSu K F FCU
Compact module, with failsafe function, Fast Control Unit: 12 digital, inputs , 2 digital outputs (2 A), 2 digital outputs 2-pole (2 A).
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV, KOSHA |
| Application range:: | Failsafe |
| Number of digital inputs:: | 12 |
| Positive switching 1-pole SC output:: | 2 |
| Number of 2-pole semiconductor outputs:: | 2 |
| Number of test pulse outputs:: | 2 |
| Protection type, housing:: | IP20 |
| Width dimension:: | 56.0 mm |
| Height dimension:: | 128.9 mm |
| Depth dimension:: | 56.0 mm |
| Gross weight:: | 185 g |
| Net weight:: | 170 g |
| Ambient temperature:: | 0 - 60 °C |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
