Product
Pilz
312191
PSSu E F PS1
Request a Quote
Image copyright: Pilz

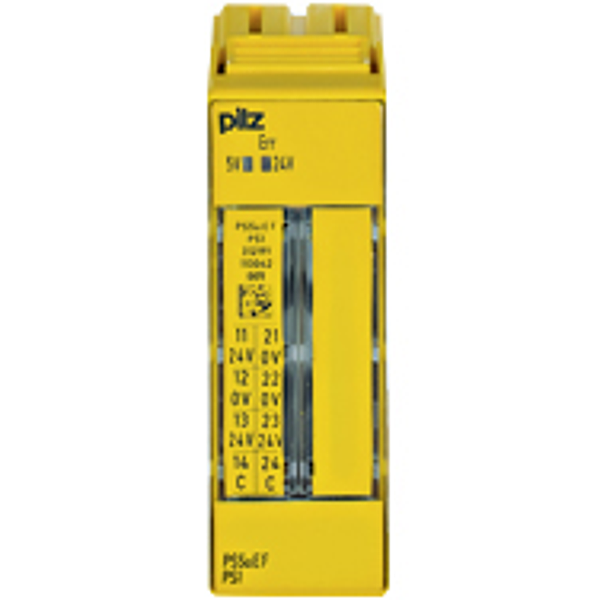

Pilz 312191
PSSu E F PS1
Electronic module to supply power (periphery 24 V, system 5 V,, buffered).
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV, KOSHA |
| Application range:: | Standard/failsafe |
| Power consumption DC:: | 12.0 W |
| Supply voltage (V):: | 24,0 |
| Supply voltage type:: | DC |
| Purpose of supply voltage:: | Module Supply |
| Permitted base modules:: | PSSu BS 2/8C, PSSu BS 2/8S, PSSu BS-R 2/8C, PSSu BS-R 2/8S |
| Width dimension:: | 25.2 mm |
| Height dimension:: | 76.0 mm |
| Depth dimension:: | 60.2 mm |
| Gross weight:: | 66 g |
| Net weight:: | 57 g |
| Ambient temperature:: | 0 - 60 °C |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
