Pantron
9IST010
IST-TSP-5
Pantron 9IST010
IST-TSP-5

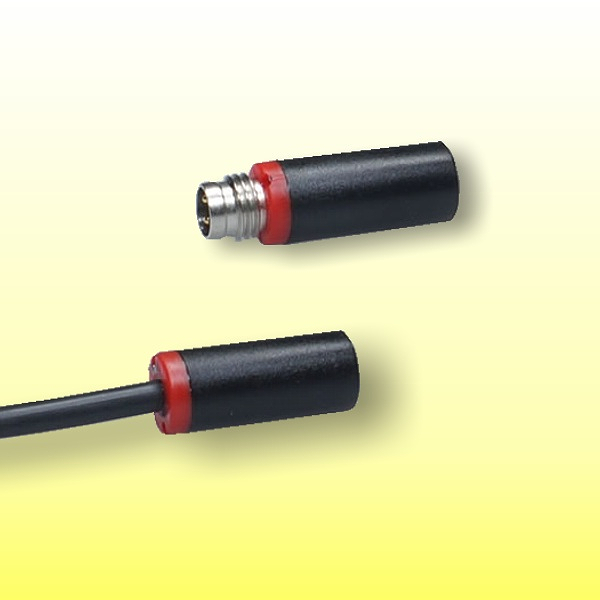

Safety transmitter TSP, Safety transmitter TSP, round plastic housing, 10 mm, short type
Description
The infrared safety transmitter IST-TSP is designed for use with the PANTRON ISL safety light barrier. This sensor meets the requirements of EN61496-2 regarding opening angle and immunity to ambient light. The body of the sensor is a round plastic housing that may be fitted with sensor mounting blocks. It is resistant to petroleum products and many solvents. A safety receiver of this type is not available. Alternatively, a safety receiver of the longer type. TLP, could be used. Other cable lengths are available upon request. Sensor head for safety light barrier ISL. Meets the requirements of EN61496-2. Round plastic housing, 10 mm. Short type
Downloads
Technical parameters
| Type: | Ist-tsp... |
| Transmit light: | Infrarot 880 nm, modulated |
| Transmit angle: | ± 5° |
| Connection: | 2-wire pvc cable 3-pin circular plug m8 |
| Housing material: | Polyamide |
| Protection class: | Ip 67 |
| Operating temperature: | -20 °c ... +60 °c |
| Storage temperature: | -40 °c ... +80 °c |
| Vibration: | 10...55 hz, 1,5 mm |
| Shock: | 30 g |
