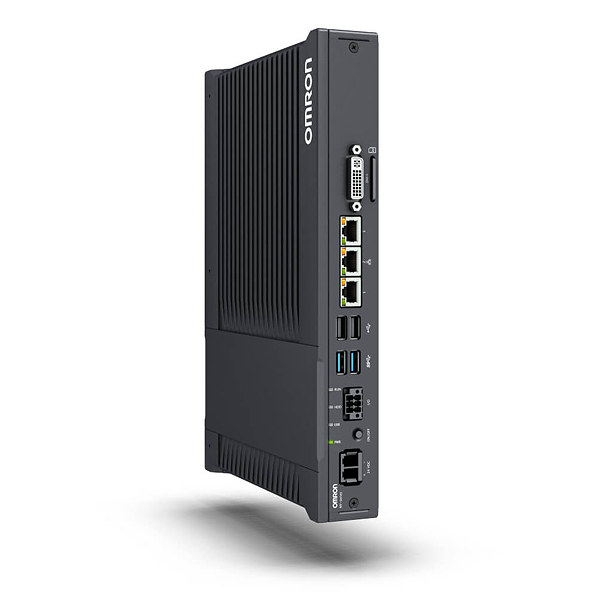

Omron 683629
NYB2C-30366
Industrial Box PC with Intel® Celeron® 3965U, 8 GB DDR4 RAM (non-ECC), 128 GB CFast iMLC, WIN 10 IoT Ent. (64-bit), no PCIe slot, NYML port
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Max. number of motion axes: | 0 axes |
| Processor family: | Intel® Celeron® |
| Processor specification: | 3965U (2.2 GHz) |
| Cooling method: | Passive cooling (fanless) |
| Memory: | 8 GB RAM (non ECC) |
| Storage: | 128 GB CFast |
| Operating system: | Windows 10 (64 bits) |
| Expansion slot: | No Expansion |
| Modular port: | NYML |
| Communication port(s): | EtherNet/IP, Ethernet TCP/IP, USB |
| Video output: | DVI-D |
| Material housing: | Aluminium, black |
| Degree of protection (IP): | IP20 |
| Operation temperature: | 0-55 °C |
| Supply voltage DC: | 20.4-28.8 V |
| Height: | 41 mm |
| Width: | 282 mm |
| Depth: | 195 mm |
| Product Weight (unpacked): | 2100 g |
Logistic parameters
| ECCN: | |
| Country of Origin: | The Netherlands |
| EAN: | 4549734262460 |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
