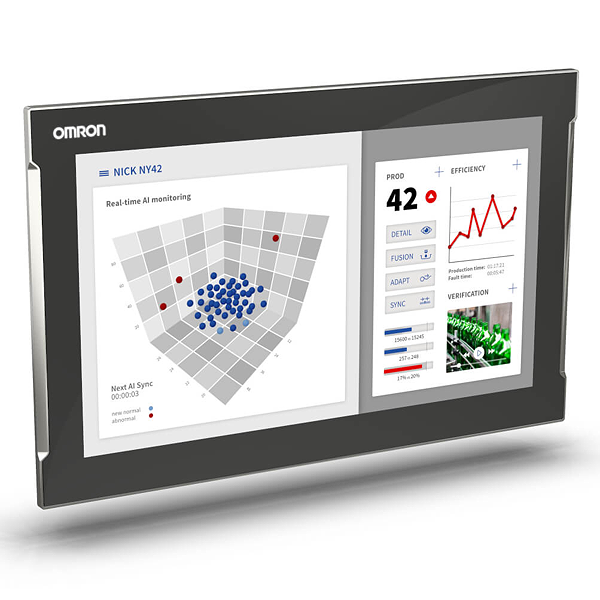

Omron 683601
NYM19W-C1160
Industrial Monitor, 18.5" display with capacitive touchscreen, Build-in mounting, NYML port, Ni plating
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Screen diagonal: | 18.5 in |
| Modular port: | NYML |
| Display ratio: | 16:9 |
| Number of pixels, horizontal: | 1920 |
| Number of pixels, vertical: | 1080 |
| Material housing: | Aluminium, nickel plating |
| Type of display: | TFT |
| Touchscreen technology: | Projected capacitive |
| Number of colours of the display: | 16777216 |
| Mounting method: | Build-in |
| Degree of protection (IP), front side: | IP65 |
| Supply voltage DC: | 19.2-28.8 V |
| Operation temperature: | 0-55 °C |
| Height of the front: | 303 mm |
| Width of the front: | 481 mm |
| Height of panel cutout: | 285 mm |
| Width of panel cutout: | 463 mm |
| Built-in depth: | 58 mm |
| Product Weight (unpacked): | 0 g |
Logistic parameters
| ECCN: | |
| Country of Origin: | The Netherlands |
| EAN: | 4549734279291 |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
