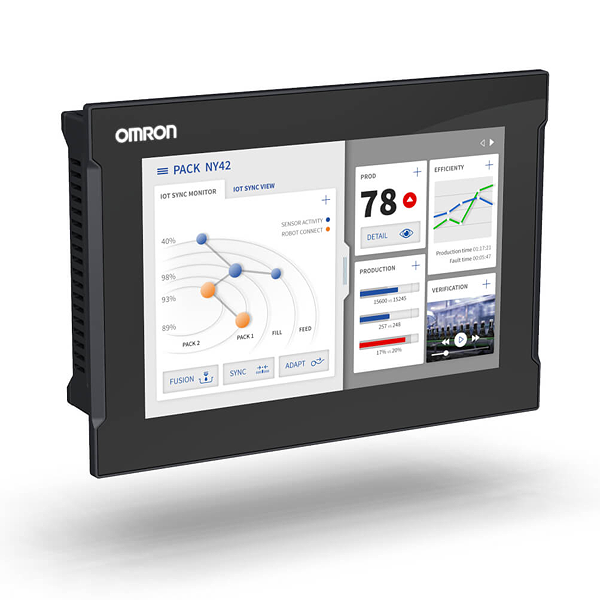

Omron 683317
NYP35-31002-12WC1000
Industrial Panel PC with Intel® Core™ i5-7300U, 8 GB DDR4 RAM (non-ECC), No storage, No OS, PCIe slot, extra DVI-D, 12.1" display with capacitive touchscreen
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Screen diagonal: | 12.1 in |
| Max. number of motion axes: | 0 axes |
| Processor family: | Intel® Core™ i5 |
| Processor specification: | 7300U (2.6 GHz) |
| Cooling method: | Passive cooling (fanless) |
| Memory: | 8 GB RAM (non ECC) |
| Storage: | No Storage |
| Operating system: | No OS |
| Expansion slot: | 1 x PCIe slot (X2 lanes) |
| Modular port: | DVI-D |
| Communication port(s): | EtherNet/IP, Ethernet TCP/IP, USB |
| Video output: | DVI-D |
| Display ratio: | 16:10 |
| Number of pixels, horizontal: | 1280 |
| Number of pixels, vertical: | 800 |
| Type of display: | TFT |
| Touchscreen technology: | Projected capacitive |
| Mounting method: | Build-in |
| Material housing: | Aluminium, black |
| Degree of protection (IP), front side: | IP65 |
| Operation temperature: | 0-55 °C |
| Supply voltage DC: | 20.4-28.8 V |
| Height of the front: | 234 mm |
| Width of the front: | 332 mm |
| Height of panel cutout: | 216 mm |
| Width of panel cutout: | 314 mm |
| Built-in depth: | 97 mm |
| Product Weight (unpacked): | 5400 g |
Logistic parameters
| ECCN: | |
| Country of Origin: | The Netherlands |
| EAN: | 4549734207447 |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
