Product
Omron
681713
E2E-X1R5D1-M1TGJ-T 0.3M
Request a Quote

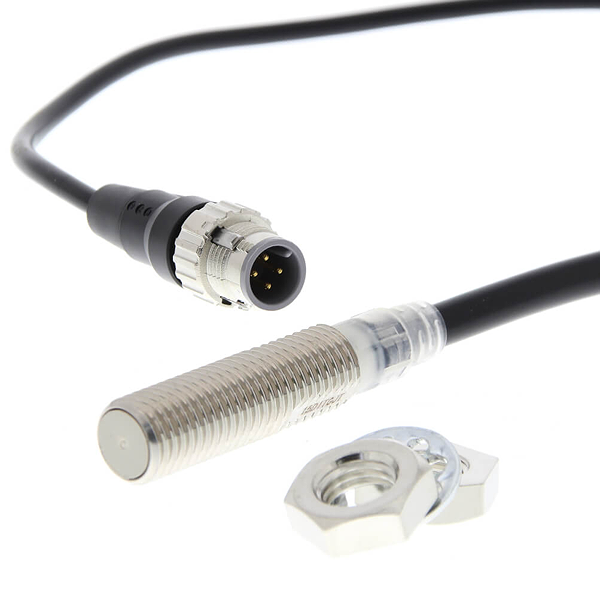

Image copyright: Omron
Omron 681713
E2E-X1R5D1-M1TGJ-T 0.3M
Proximity sensor, inductive, brass-nickel, M8, shielded, 1.5 mm, NO, 0.3 m pig-tail, DC 2-wire, no polarity
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Size: | M8 |
| Mounting type: | Flush |
| Sensing distance: | 1.5 mm |
| Overall length: | 38 mm |
| Thread length: | 26 mm |
| Material housing: | Stainless steel |
| Output type: | 2-wire |
| Operation mode: | NO |
| Connection method: | M12 Pre-wired Smartclick connector |
| Cable specifications: | PVC (oil-resistant reinforced) |
| Cable length: | 0.3 m |
Logistic parameters
| ECCN: | |
| Country of Origin: | China |
| EAN: | 4549734184090 |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
