Product
Omron
681674
E2E-X10MD112-TR 2M
Request a Quote
Image copyright: Omron
Omron 681674
E2E-X10MD112-TR 2M

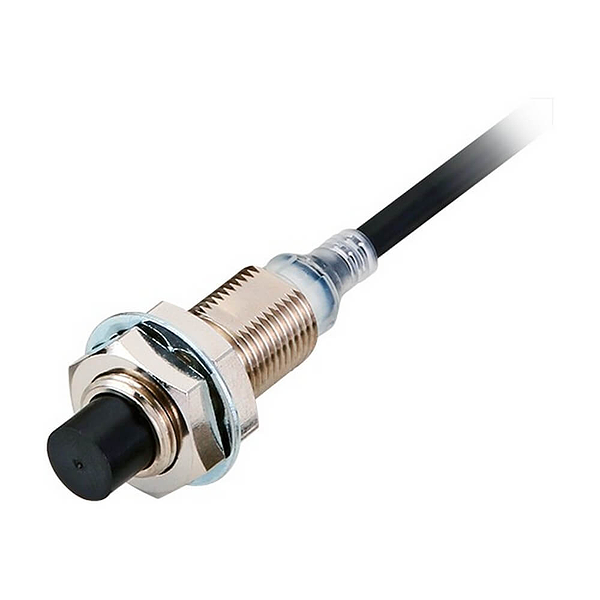

Proximity sensor, inductive, brass-nickel, M12, non-shielded, 10 mm, NO, 2 m cable robotic, DC 2-wire, no polarity
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Size: | M12 |
| Mounting type: | Non-flush |
| Sensing distance: | 10 mm |
| Overall length: | 47 mm |
| Thread length: | 26 mm |
| Material housing: | Brass, nickel plated |
| Output type: | 2-wire |
| Operation mode: | NO |
| Connection method: | Cable |
| Cable specifications: | PVC (oil-resistant reinforced) |
| Cable length: | 2 m |
| Features: | Flexible cable |
Logistic parameters
| ECCN: | |
| Country of Origin: | China |
| EAN: | 4549734182539 |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
