Product
Omron
681561
R88M-1M75030H-S2
Request a Quote
Image copyright: Omron

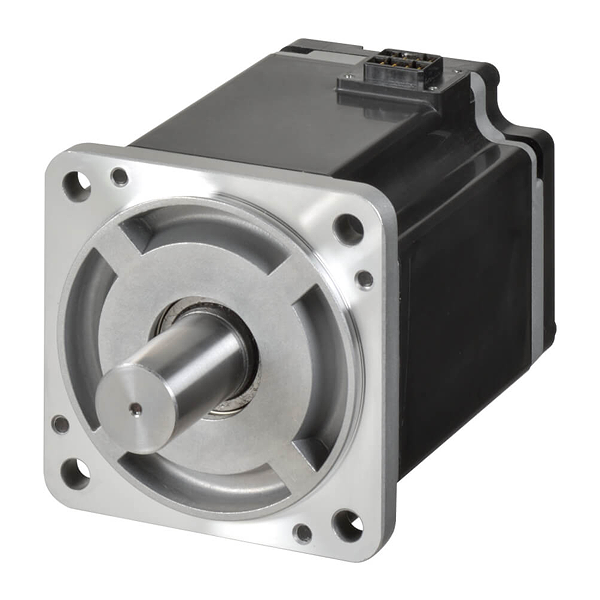

Omron 681561
R88M-1M75030H-S2
1S AC servo motor, 750 W, 230 VAC, 3000 rpm, 2.39 Nm, incremental encoder
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Servo control method: | EtherCAT |
| Drive supply voltage: | 230 V single phase |
| Rated output: | 0.75 kW |
| Rated torque: | 2.39 Nm |
| Rated speed: | 3000 r/min |
| Encoder resolution: | 23 Bit |
| Motor with brake: | |
| Peak torque: | 8.4 Nm |
| Encoder type: | Incremental |
| Flange size square (LC): | 80 mm |
| Motor with oil seal: | |
| Shaft with key: | |
| Shaft with tap: |
Logistic parameters
| ECCN: | |
| Country of Origin: | Phillippines |
| EAN: | 4549734172448 |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
