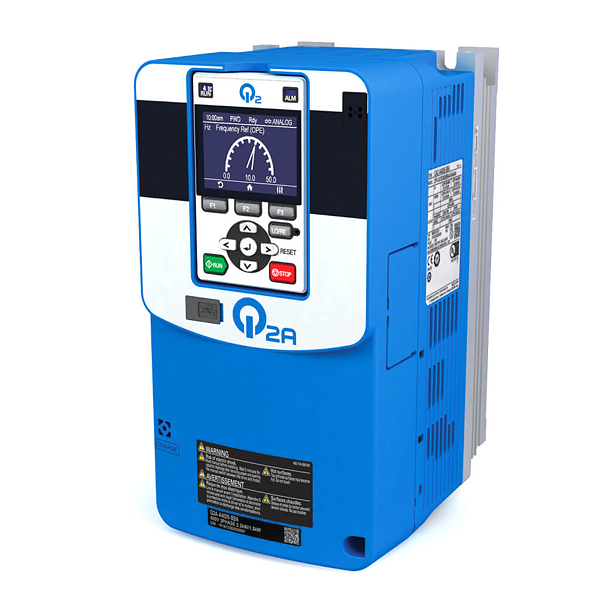

Omron 681124
Q2A-A4023-AAA
Inverter Q2A, 400 V, ND: 23.4 A / 11 kW, HD: 18 A / 7.5 kW, IP20, max. output freq. 590 Hz
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Inverter control method: | Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector |
| Drive supply voltage: | 400 V three phase |
| Max. motor output at constant torque (HD): | 7.5 kW |
| Max. motor output at variable torque (ND): | 11 kW |
| Built in EMC filter: | |
| Degree of protection (IP): | IP20 |
| Finless type: | |
| Compatible motor type: | Induction or asynchronous motor, Permanent magnet motor, Synchronous reluctance motor |
| Regenerative solutions: | As inverter option |
| Communication port(s): | MODBUS Slave, Serial RS-485, USB |
| Communication option(s): | Bluetooth, CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave |
| Height: | 260 mm |
| Width: | 140 mm |
| Depth: | 211 mm |
| Product Weight (unpacked): | 4200 g |
Logistic parameters
| ECCN: | |
| Country of Origin: | United Kingdom |
| EAN: | 4549734944144 |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
