Product
Omron
680584
S8VK-X09024A-EIP
Request a Quote
Image copyright: Omron

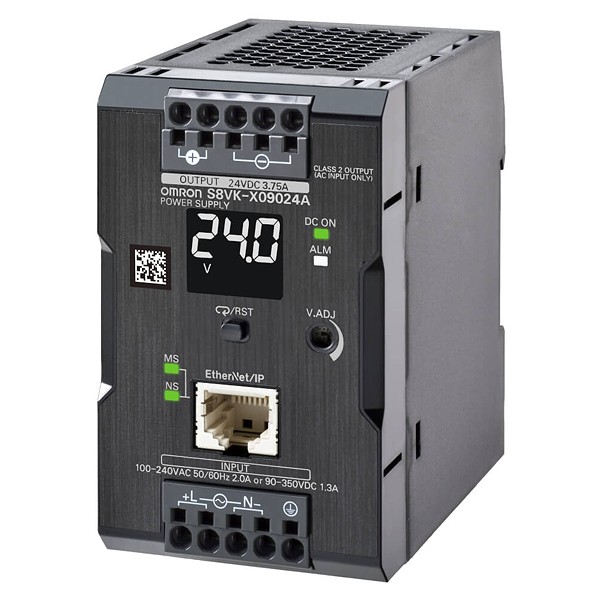

Omron 680584
S8VK-X09024A-EIP
Book type power supply, 90 W, 24 VDC, 3.75 A, DIN rail mounting, Push-in terminal, Coated, display, Ethernet IP / Modbus TCP compatibility
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | Book type |
| Mounting method: | DIN rail |
| Phase: | Single |
| Power output: | 90 W |
| Efficiency: | 87 % |
| Output voltage: | 24 V |
| Rated output current: | 3.75 A |
| Power boost ratio: | 100 % |
| Temperature range: | -40-70 °C |
| Terminal: | Push-in |
| Communication port(s): | EtherNet/IP, MODBUS/TCP |
| Alarm function: | - |
| Number of output branches: | 1 |
| Rated supply voltage at AC 50 Hz: | 100-240 V |
| Allowable supply voltage AC: | 85-264 V |
| Allowable supply voltage DC: | 90-350 |
| Width: | 55 mm |
| Height: | 94.7 mm |
| Depth: | 92.3 mm |
Logistic parameters
| ECCN: | |
| Country of Origin: | China |
| EAN: | 4549734172714 |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
