Product
Omron
236008
E6B2-CWZ1X 1000P/R 0.5M
Request a Quote
Image copyright: Omron

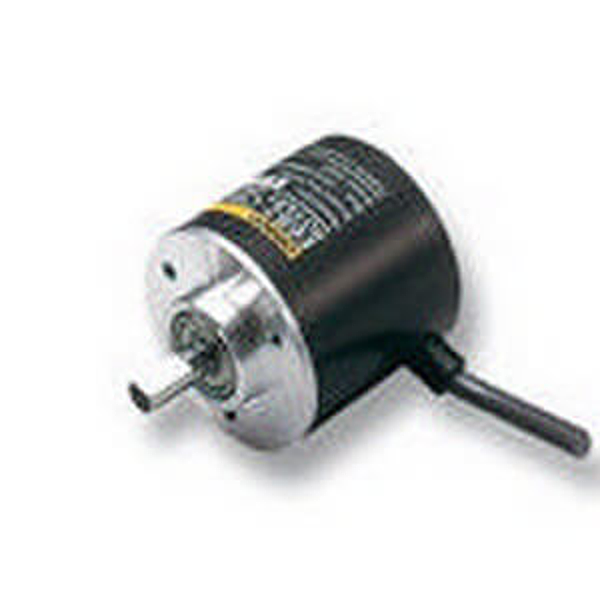

Omron 236008
E6B2-CWZ1X 1000P/R 0.5M
Encoder, incremental, 1000 ppr, 5 VDC, Line driver 0.5 m cable
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Drehgeber, inkremental, 1.000 Ppr, 5 VDC, Leitungstreiber, 0,5-m-Kabel
Technical parameters
| Model: | Incremental encoder |
| Construction size: | 40 mm |
| Pulses per rotation: | 1000 |
| Signal outputs: | A, B, Z |
| Shaft diameter: | 6 mm |
| Power supply voltage: | 4.8-5.2 V |
| Output type: | Line driver (RS-422) |
| Connection method: | Cable |
| Cable length: | 0.5 m |
Logistic parameters
| ECCN: | |
| Country of Origin: | China |
| EAN: | 4547648295543 |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
