L200-M1C3-MLM24-L2G

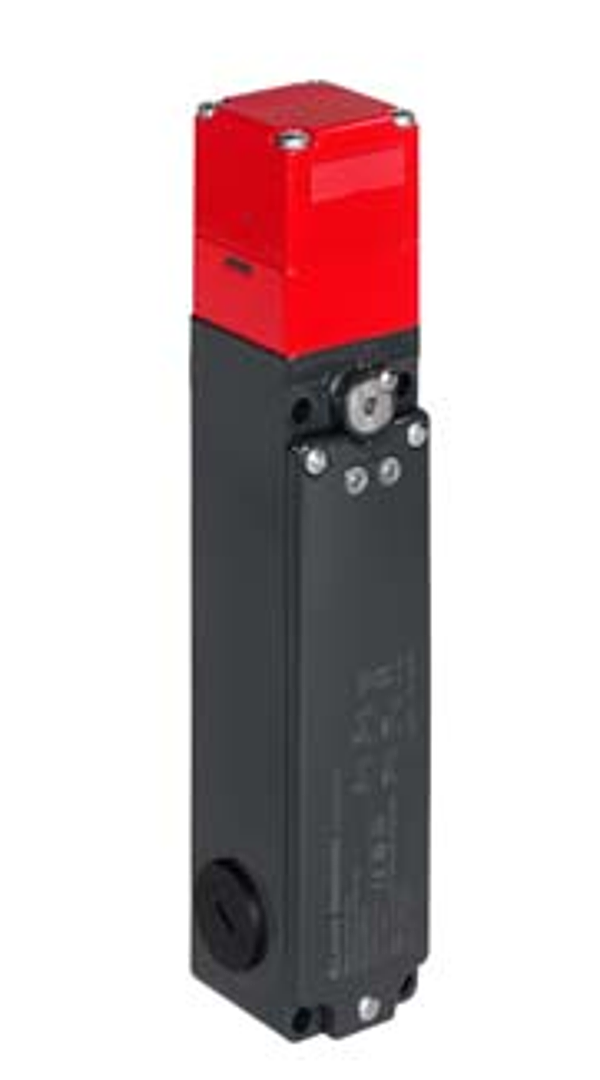

L200-M1C3-MLM24-L2G - Safety locking device
Series: | L200 |
Functions: | Locking device with guard interlocking according to ISO 14119, Electro-magnetic guard interlocking (magnet-force), Illuminated displays for magnet activation, Integration in control circuits up to category 4 in accordance with EN ISO 13849-1 |
Mission time: | 20 years, EN ISO 13849-1 |
B10d: | 2,000,000 number of cycles |
Usage category at DC 13: | Ue / Ie: 24 V / 6 A, 125 V / 1.1 A, 250 V / 0.4 A, EN 60947-5-1 |
Usage category at AC 15: | Ue 250 V, Ie 5 A, EN 60947-5-1 |
Contact allocation, actuator: | 1NC + 1NO |
Contact allocation, magnet: | 2NC |
Contact opening: | Force-fit |
Magnet operating voltage: | 24 V DC, -10 ... 25 % |
Short circuit protection, magnet: | 0.5 A, 24 V, type gG, IEC 60269-1 |
Short circuit protection, safety circuit: | 500 V, 10 A, type aM, IEC 60269-1 |
Contact protection: | Earthing |
Rated insulation voltage: | 250 V AC, 300 V DC |
Conventional thermal current, max.: | 10 A |
Switch-on time: | 100 % |
Number of connections: | 1 Piece(s) |
Number of cable entries: | 3 Piece(s) |
Function: | Contact connection, Voltage supply |
Type of connection: | Terminal |
Type of terminal: | Screw terminal |
No. of pins: | 10 -pin |
Connection cross sections: | 1 x 0.34 mm² to 2 x 1.5 mm², wire |
Design: | Cubic |
Dimension (W x H x L): | 45 mm x 46 mm x 194.7 mm |
Housing material: | Metal, ZAMAK |
Electrical contact material: | Silver alloy |
Net weight: | 739 g |
Housing color: | Gray, Red |
Type of fastening: | Through-hole mounting |
Type of cable entry: | M20 x 1.5 |
Switch type: | Interlock device with guard interlocking, ISO 14119 |
Switching principle: | Slow-action contact |
Approach actuation directions: | 1 x top, 4 x side (90°) |
Approach speed: | 0.001 ... 0.5 m/s |
Locking type: | Electromagnetic |
Locking actuation: | Magnet |
Locking force, max.: | 2,500 N |
Mechanical life time: | 1,000,000 actuation cycles, IEC 6047-5-1 |
Actuation frequency, max.: | 600 per hour, IEC 6047-5-1 |
External actuator: | AC-AHxx, series, straight, angled, resilient, alignable |
Extraction force, unlocked actuator: | 30 N |
Recoil tolerance: | 4.5 mm |
Ambient temperature, operation: | -25 ... 60 °C |
Degree of contamination: | 3, EN 60947-1 |
Degree of protection: | IP 67 |
Certifications: | IMQ, c UL US |
Customs tariff number: | 85369095 |
eCl@ss 8.0: | 27272603 |
eCl@ss 9.0: | 27272603 |
ETIM 5.0: | EC002593 |
ETIM 6.0: | EC002593 |
