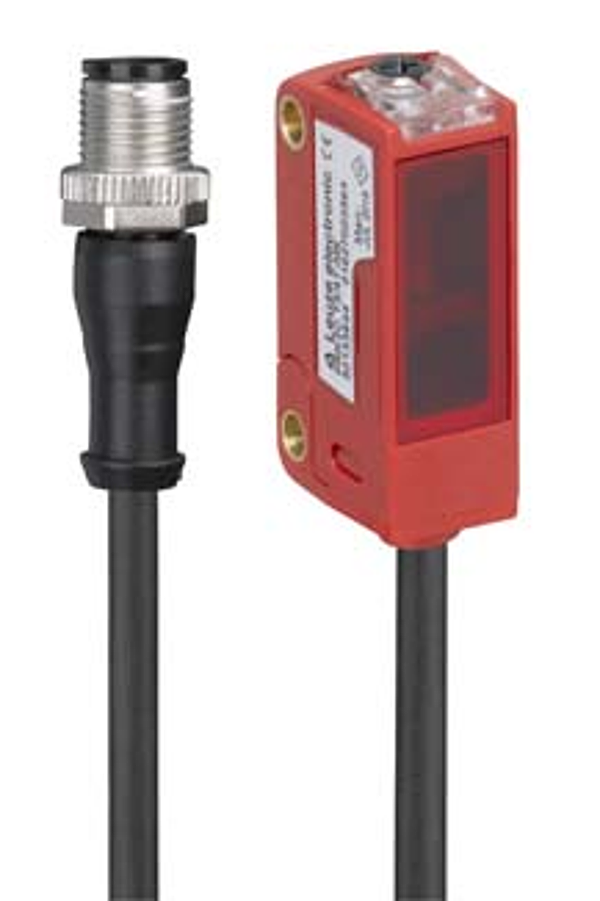

Leuze electronic 50138204
HT3C.BVXL/4P-200-M12
HT3C.BVXL/4P-200-M12 - Diffuse sensor with background suppression
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Series: | 3C |
| Operating principle: | Diffuse reflection principle with background suppression |
| Application: | Detection of transparent films, Detection of highly transparent bottles, Detection of objects with openings |
| Special version: | Extra long light spot (XL), V-optics |
| Black-white error: | < 20% up to 80 mm |
| Operating range, white 90%: | 0.01 ... 0.08 m |
| Operating range, gray 18%: | 0.012 ... 0.07 m |
| Operating range, black 6%: | 0.012 ... 0.06 m |
| Operating range limit, white 90%: | 0.01 ... 0.09 m |
| Operating range limit, gray 18%: | 0.012 ... 0.075 m |
| Operating range limit, black 6%: | 0.012 ... 0.065 m |
| Adjustment range: | 20 ... 90 mm |
| Light source: | LED, Red |
| Light spot size [at sensor distance]: | 5 mm x 40 mm [70 mm] |
| Protective circuit: | Polarity reversal protection, Short circuit protected |
| Supply voltage UB: | 10 ... 30 V, DC, Incl. residual ripple |
| Residual ripple: | 0 ... 15 %, From UB |
| Open-circuit current: | 0 ... 15 mA |
| Number of digital switching outputs: | 2 Piece(s) |
| Switching element: | Transistor, PNP |
| Switching principle: | Light switching |
| Switching element: | Transistor, PNP |
| Switching principle: | Dark switching |
| Switching frequency: | 1,000 Hz |
| Response time: | 0.5 ms |
| Function: | Signal OUT, Voltage supply |
| Type of connection: | Cable with connector |
| Cable length: | 200 mm |
| Thread size: | M12 |
| Material: | Metal |
| No. of pins: | 4 -pin |
| Dimension (W x H x L): | 11.4 mm x 34.2 mm x 18.3 mm |
| Housing material: | Plastic, PC-ABS |
| Lens cover material: | Plastic / PMMA |
| Net weight: | 20 g |
| Type of fastening: | Two M3 threaded sleeves, Via optional mounting device |
| Compatibility of materials: | ECOLAB |
| Operational controls: | Multiturn potentiometer |
| Ambient temperature, operation: | -40 ... 60 °C |
| Degree of protection: | IP 69K, IP 67 |
| Protection class: | III |
| Certifications: | c UL US |
| Standards applied: | IEC 60947-5-2 |
| Customs tariff number: | 85365019 |
| eCl@ss 8.0: | 27270904 |
| eCl@ss 9.0: | 27270904 |
| ETIM 5.0: | EC002719 |
| ETIM 6.0: | EC002719 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Deutschland |
| EAN: | |
| Weight: | 0.03 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
