Leuze electronic 50138138
HS 6678 DPM

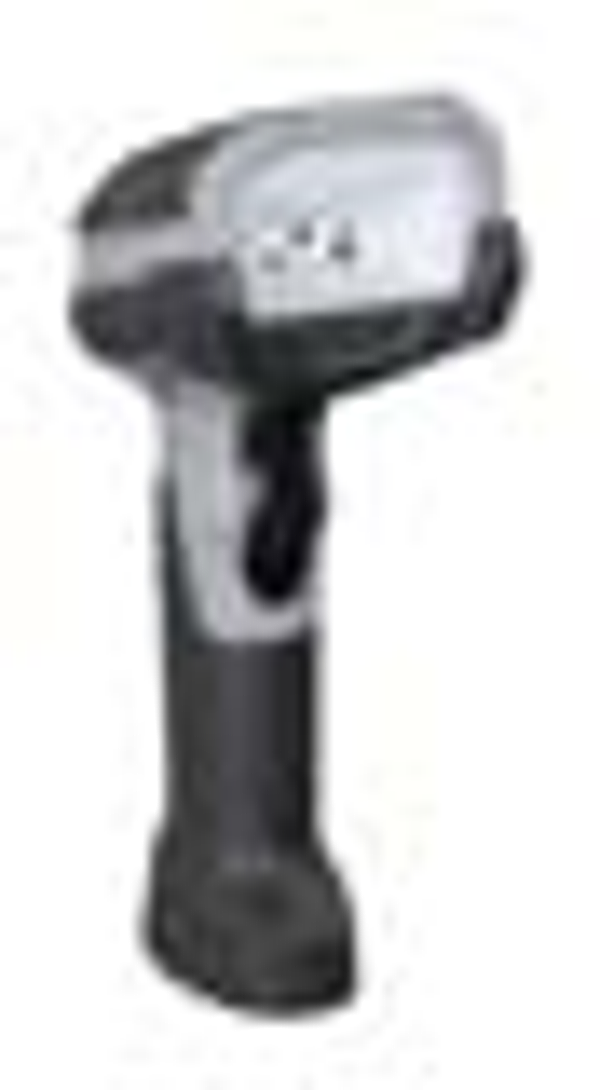

HS 6678 DPM - Wireless mobile 2D-code reader
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Series: | HS 66x8 |
| Code types, readable: | 2/5 Interleaved, Aztec, Codabar, Code 128, Code 39, Code 93, Composite Codes, Data Matrix Code, Directly-marked 2D-codes, EAN 128, EAN 8/13, EAN Addendum, GS1 Databar, GS1 Databar Expanded, GS1 Databar Limited, GS1 Databar Omnidirectional, GS1 Databar Stacked, GS1 Databar Truncated, Maxicode, Micro PDF, Micro QR, Others on request, UPC |
| Reading distance: | 0 ... 147 mm |
| Light source: | LED, Red / white |
| LED group: | 1 |
| Camera resolution, horizontal: | 1,280 px |
| Camera resolution, vertical: | 960 px |
| Alignment aid: | Laser, red |
| Light wavelength: | 650 nm |
| Supply voltage UB: | 4.5 ... 5.5 V, DC |
| Power consumption, max.: | 5 W |
| Battery technology: | LiIon |
| Battery storage capacity: | 3.1 A·h |
| Type: | PS/2, USB, RS 232 |
| Function: | Process |
| Function: | Process |
| Bluetooth range: | Class 1 (default: class 2) |
| Bluetooth version: | 4.0 |
| Type of connection: | Bluetooth |
| Dimension (W x H x L): | 77 mm x 185 mm x 143 mm |
| Housing material: | Plastic, PC-ABS |
| Net weight: | 402 g |
| Ambient temperature, operation: | -20 ... 50 °C |
| Ambient temperature, storage: | -40 ... 70 °C |
| Relative humidity (non-condensing): | 5 ... 95 % |
| Drop height: | 2.4 m |
| Measurements relative to: | Concrete floor |
| Degree of protection: | IP 65, IP 67 |
| Certifications: | c UL US |
| Customs tariff number: | 84719000 |
| eCl@ss 8.0: | 27280103 |
| eCl@ss 9.0: | 27280103 |
| ETIM 5.0: | EC002999 |
| ETIM 6.0: | EC002999 |
Logistic parameters
| ECCN: | |
| Country of Origin: | China |
| EAN: | |
| Weight: | 0.48 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
