Product
Leuze electronic
50137473
OGS 600-140/CN-M12
Request a Quote

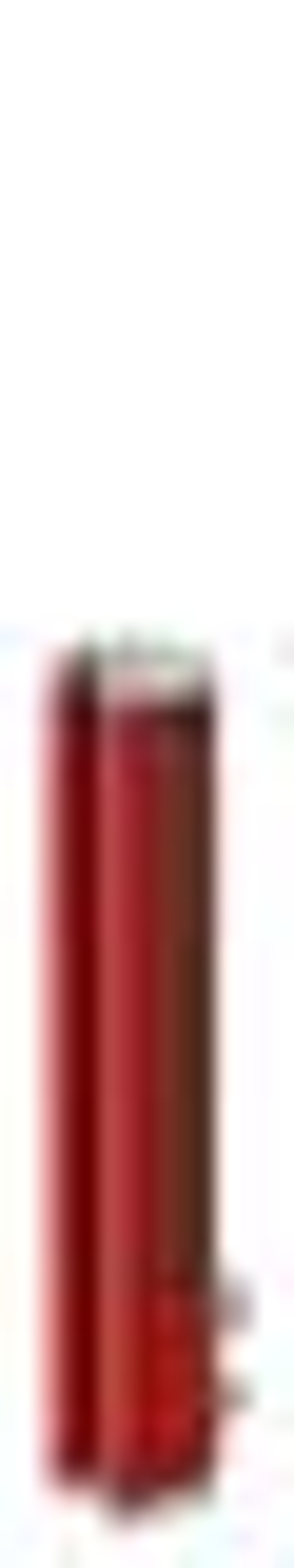

Image copyright: Leuze electronic
Leuze electronic 50137473
OGS 600-140/CN-M12
OGS 600-140/CN-M12 - Optical guidance sensor
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Series: | OGS 600 |
| Application: | Optical guidance |
| Trace types: | Light trace on dark background, Dark trace on light background, Retro-reflective trace |
| Working range: | 10 ... 70 mm |
| Light source: | LED, Red |
| LED light wavelength: | 634 nm |
| Detection width for complete trace: | 115 mm |
| Measurement value resolution: | 1 mm, Working distance 35 mm |
| Linearity error: | 0 ... 5 mm, Working distance 35 mm |
| Output value for edges: | 170 ... 1,330 |
| Maximum output value: | 0 ... 1,500 |
| Supply voltage UB: | 18 ... 30 V, DC, Incl. residual ripple |
| Number of digital switching outputs: | 1 Piece(s) |
| Switching element: | Transistor, PNP |
| Cycle time: | 10 ms |
| Type: | CANopen |
| Function: | Process |
| Type: | RS 232 |
| Number of connections: | 2 Piece(s) |
| Type of connection: | Connector |
| Thread size: | M12 |
| No. of pins: | 5 -pin |
| Type of connection: | Connector |
| Thread size: | M12 |
| No. of pins: | 5 -pin |
| Dimension (W x H x L): | 34.5 mm x 47.5 mm x 216 mm |
| Lens cover material: | Plastic |
| Net weight: | 245 g |
| Ambient temperature, operation: | -15 ... 50 °C |
| Ambient temperature, storage: | -30 ... 60 °C |
| Degree of protection: | IP 65 |
| Certifications: | c UL US |
| Standards applied: | EN 60947-5-2:2007+A1:2012 |
| Customs tariff number: | 85365019 |
| eCl@ss 8.0: | 27270906 |
| eCl@ss 9.0: | 27270906 |
| ETIM 5.0: | EC001820 |
| ETIM 6.0: | EC001820 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Deutschland |
| EAN: | |
| Weight: | 0.64 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
