50135466
A7-V1-MP1-DS-ROG-T-100

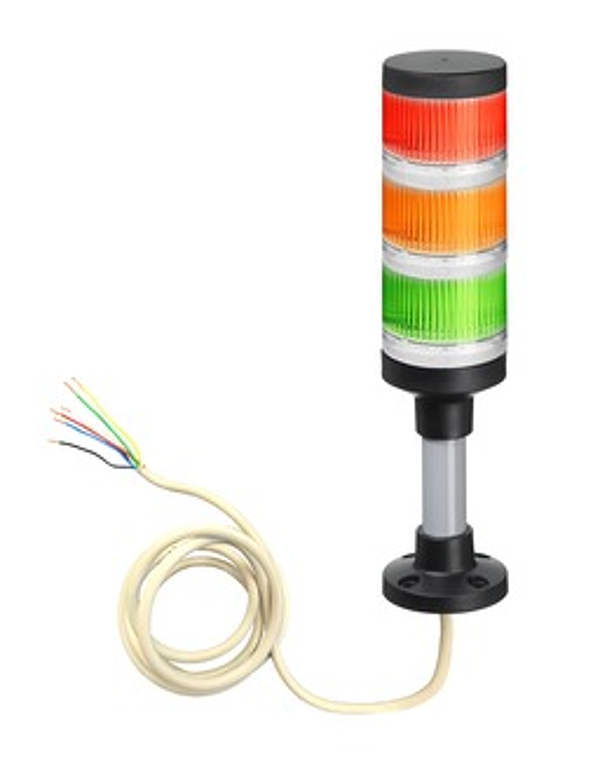

A7-V1-MP1-DS-ROG-T-100 - Signaling column
Series: | A7 |
Type of signaling: | Optical |
Life expectancy: | > 100,000 h |
Supply voltage UB: | 24 V, DC, 10 % |
Current consumption, max.: | 130 mA |
Number of connections: | 1 Piece(s) |
Function: | Voltage supply |
Type of connection: | Terminal |
Cable length: | 1,500 mm |
Number of conductors: | 6 -wire |
Type of connection: | Open end |
Design: | Cylindrical |
Dimension (Ø x L): | 70 mm x 297 mm |
Housing material: | Plastic, Aluminum, PC-ABS, Metal |
Net weight: | 535 g |
Housing color: | Gray, Black |
Type of fastening, at system: | Screw type / horizontal |
Type of illuminant: | LED/24V |
Lens modules: | 3 pieces, ready-made |
Signal image: | Continuous light |
Angle of radiation: | 360° |
Sequence of the modules (ascending): | Green, orange, red |
Degree of protection: | IP 66, Only when mounted on a housing with the same degree of protection |
Certifications: | CSA, CE |
Customs tariff number: | 85318070 |
eCl@ss 8.0: | 27371220 |
eCl@ss 9.0: | 27371220 |
ETIM 5.0: | EC000232 |
ETIM 6.0: | EC000232 |
ECCN: | |
Country of Origin: | Indien |
EAN: | |
Weight: | 0.64 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
