Leuze electronic
50129538
HT10L1.3/L6T-M12
Leuze electronic 50129538
HT10L1.3/L6T-M12

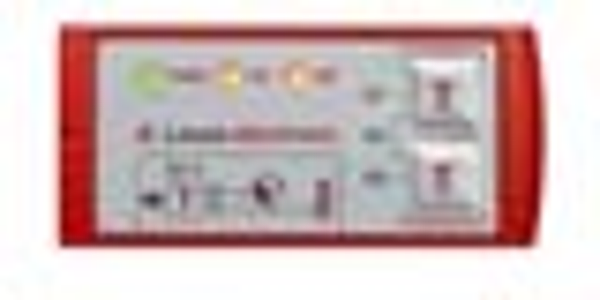

HT10L1.3/L6T-M12 - Diffuse sensor with background suppression
Description
Applikation: Fachfeinpositionierung, Durchschubsicherung im Palettenlager, Genaue Objektpositionierung; Sonderausführung: Teach-Eingang, 2 unabhängige Schaltpunkte; Grenzreichweite, weiß 90%: 0,05 ... 8 m; Lichtquelle: Laser, rot; Schutzklasse: 1; Versorgungsspannung: 18 ... 30 V, DC; Digitale Schaltausgänge: 2 St.; Schaltausgang 1: Transistor, Gegentakt, IO-Link / hellschaltend (PNP)/dunkelschaltend (NPN); Schaltausgang 2: Transistor, Gegentakt, hellschaltend (PNP)/dunkelschaltend (NPN); Schaltfrequenz: 40 Hz; Schnittstelle: IO-Link; Anschluss: Rundstecker, M12, Kunststoff, 5 -polig; Bauform Gehäuse: kubisch; Abmessungen: 25 mm x 65 mm x 55 mm; Bedienelemente: Folientastatur; Umgebungstemperatur Betrieb: -40 ... 50 °C; Schutzart: IP 67
Technical parameters
| Series: | 10 |
| Operating principle: | Diffuse reflection principle with background suppression |
| Application: | Compartment fine positioning, Exact object positioning, Push-through protection in pallet warehouse |
| Special version: | Teach input, 2 independent switching points |
| Operating range, white 90%: | 0.05 ... 3.5 m |
| Operating range limit, white 90%: | 0.05 ... 8 m |
| Light source: | Laser, Red |
| Laser class: | 1, IEC/EN 60825-1:2007 |
| Light spot size [at sensor distance]: | 7 mm x 7 mm [7,000 mm] |
| Protective circuit: | Transient protection, Polarity reversal protection, Short circuit protected |
| Supply voltage UB: | 18 ... 30 V, DC |
| Residual ripple: | 0 ... 15 %, From UB |
| Open-circuit current: | 0 ... 150 mA |
| Number of teach inputs: | 1 Piece(s) |
| Number of digital switching outputs: | 2 Piece(s) |
| Switching element: | Transistor, Push-pull |
| Switching principle: | IO-Link / light switching (PNP)/dark switching (NPN) |
| Switching element: | Transistor, Push-pull |
| Switching principle: | Light switching (PNP)/dark switching (NPN) |
| Switching frequency: | 40 Hz |
| Response time: | 50 ms |
| Type: | IO-Link |
| Specification: | V1.1 |
| Function: | Voltage supply, Signal OUT, Teach input |
| Type of connection: | Connector |
| Thread size: | M12 |
| Material: | Plastic |
| No. of pins: | 5 -pin |
| Dimension (W x H x L): | 25 mm x 65 mm x 55 mm |
| Lens cover material: | Glass |
| Net weight: | 70 g |
| Type of fastening: | Through-hole mounting, Via optional mounting device |
| Operational controls: | Membrane keyboard |
| Ambient temperature, operation: | -40 ... 50 °C |
| Degree of protection: | IP 67 |
| Protection class: | III |
| Certifications: | c UL US |
| Customs tariff number: | 85365019 |
| eCl@ss 8.0: | 27270904 |
| eCl@ss 9.0: | 27270904 |
| ETIM 5.0: | EC002719 |
| ETIM 6.0: | EC002719 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Deutschland |
| EAN: | |
| Weight: | 0.10 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
