Product
Leuze electronic
50111089
HRT 96M/P-1649-800-21 Ex n
Request a Quote

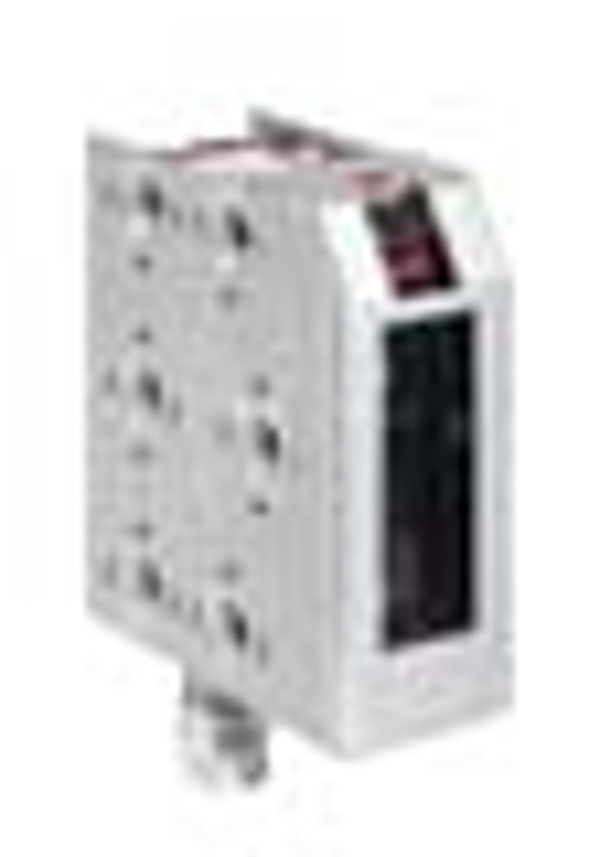

Image copyright: Leuze electronic
Leuze electronic 50111089
HRT 96M/P-1649-800-21 Ex n
HRT 96M/P-1649-800-21 Ex n - Diffuse sensor with background suppression
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Series: | 96 |
| Operating principle: | Diffuse reflection principle with background suppression |
| Special version: | Time function, Ex-protected |
| Operating range, white 90%: | 0.1 ... 0.8 m |
| Operating range, gray 18%: | 0.1 ... 0.77 m |
| Operating range, black 6%: | 0.1 ... 0.73 m |
| Operating range limit, white 90%: | 0.1 ... 1.2 m |
| Operating range limit, gray 18%: | 0.1 ... 1.14 m |
| Operating range limit, black 6%: | 0.1 ... 1.05 m |
| Light source: | LED, Infrared |
| Supply voltage UB: | 10 ... 30 V, DC |
| Number of digital switching outputs: | 1 Piece(s) |
| Switching element: | Transistor, PNP |
| Switching principle: | Light/dark reversible |
| Switching frequency: | 300 Hz |
| Type of connection: | Terminal |
| No. of pins: | 4 -pin |
| Dimension (W x H x L): | 39 mm x 96 mm x 87.7 mm |
| Housing material: | Metal (housing part used contains perfluorobutanesulfonic acid (PFBS)), Diecast zinc, Metal (housing part used contains perfluorobutanesulfonic acid (PFBS)) |
| Lens cover material: | Plastic/PC |
| Net weight: | 380 g |
| Operational controls: | Multiturn potentiometer |
| Ambient temperature, operation: | -20 ... 70 °C |
| Ex device category: | 3 |
| Ex-Zone: | 2, 22 |
| Degree of protection: | IP 67, IP 69K |
| Protection class: | II |
| Certifications: | Ex |
| Standards applied: | IEC 60947-5-2 |
| Customs tariff number: | 85365019 |
| eCl@ss 8.0: | 27270904 |
| eCl@ss 9.0: | 27270904 |
| ETIM 5.0: | EC002719 |
| ETIM 6.0: | EC002719 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Deutschland |
| EAN: | |
| Weight: | 0.76 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
