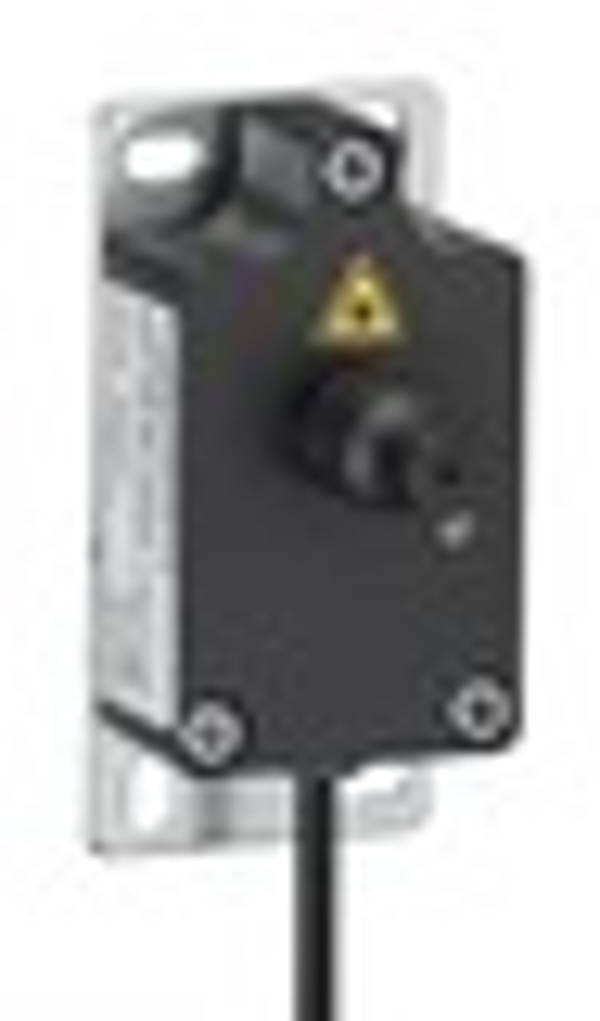

Image copyright: Leuze electronic
Leuze electronic 50107098
BKL 706 SE.1,10000P
BKL 706 SE.1,10000P - Drill break control transmitter
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Application: | Drill break control |
| Special version: | Activation input |
| Operating range: | Minimum distance between receiver and transmitter: 50 mm |
| Operating range: | 0 ... 8 m |
| Operating range limit: | 0 ... 10 m |
| Beam path: | Divergent |
| Light source: | Laser, Red |
| Laser light wavelength: | 655 nm |
| Laser class: | 2, IEC/EN 60825-1:2007 |
| Max. laser power: | 0.002 W |
| Transmitted-signal shape: | Pulsed |
| Pulse duration: | 4 µs |
| Light spot size [at sensor distance]: | 0.8 mm [1,400 mm] |
| Type of light spot geometry: | Round |
| Diaphragm diameter: | Ø 1.1 mm |
| Minimum object size: | Drill 1 mm Ø (0 … 8 m) mm |
| Protective circuit: | Short circuit protected, Polarity reversal protection, Transient protection |
| Supply voltage UB: | 10 ... 30 V, DC |
| Residual ripple: | 15 %, From UB |
| Open-circuit current: | 30 mA |
| Number of activation inputs: | 1 Piece(s) |
| Readiness delay: | 100 ms |
| Number of connections: | 1 Piece(s) |
| Function: | Signal IN, Signal OUT |
| Type of connection: | Cable |
| Cable length: | 10,000 mm |
| Sheathing material: | PUR |
| Cable color: | Black |
| Number of conductors: | 4 -wire |
| Wire cross section: | 0.25 mm² |
| Housing material: | Metal, Aluminum |
| Lens cover material: | Glass |
| Housing color: | Red |
| Type of display: | LED |
| Number of LEDs: | 2 Piece(s) |
| Operational controls: | Multiturn potentiometer |
| Function of the operational control: | Sensitivity adjustment |
| Ambient temperature, operation: | -20 ... 40 °C |
| Ambient temperature, storage: | -30 ... 70 °C |
| Extraneous light protection, max.: | 30,000 lx |
| Degree of protection: | IP 67 |
| Protection class: | III |
| Customs tariff number: | 85365019 |
| eCl@ss 8.0: | 27279090 |
| eCl@ss 9.0: | 27279090 |
| ETIM 5.0: | EC003015 |
| ETIM 6.0: | EC003015 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Deutschland |
| EAN: | |
| Weight: | 0.53 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
