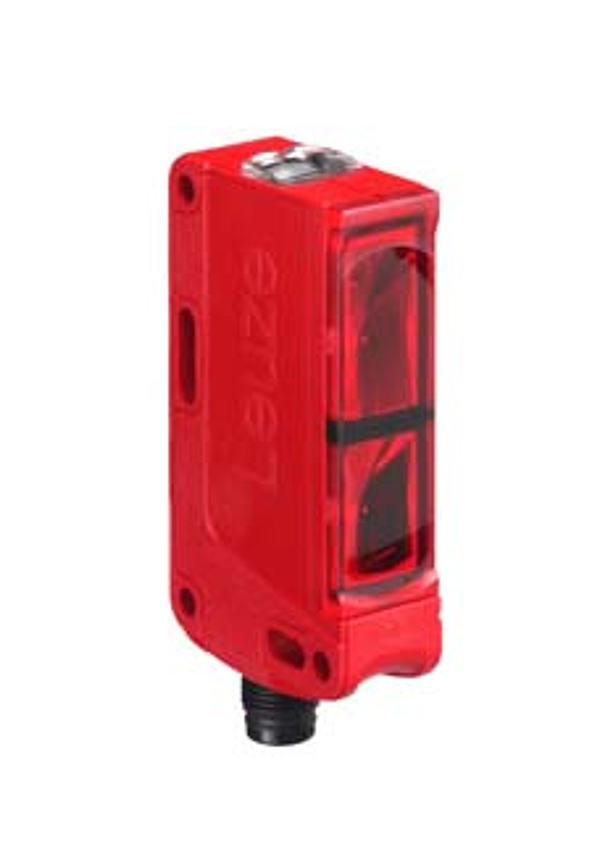

HRTR 46B/66-S-S12 - Diffuse sensor with background suppression
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Sonderausführung: kleiner Lichtfleck (S); Grenzreichweite: 0,01 ... 0,7 m; Lichtquelle: LED, rot; Versorgungsspannung: 10 ... 30 V, DC; Digitale Schaltausgänge: 2 St.; Schaltausgang 1: Transistor, Gegentakt, hellschaltend (PNP)/dunkelschaltend (NPN); Schaltausgang 2: Transistor, Gegentakt, dunkelschaltend (PNP)/hellschaltend (NPN); Schaltfrequenz: 200 Hz; Anschluss: Rundstecker, M12, Kunststoff, 4 -polig; Bauform Gehäuse: kubisch; Abmessungen: 18,5 mm x 76,9 mm x 43,4 mm; Werkstoff Gehäuse: Kunststoff; Bedienelemente: Mehrgang-Spindel; Umgebungstemperatur Betrieb: -40 ... 60 °C; Schutzart: IP 67, IP 69K
Technical parameters
| Series: | 46B |
| Operating principle: | Diffuse reflection principle with background suppression |
| Special version: | Small light spot (S) |
| Operating range, white 90%: | 0.01 ... 0.7 m |
| Operating range, gray 18%: | 0.03 ... 0.65 m |
| Operating range, black 6%: | 0.06 ... 0.55 m |
| Operating range limit: | 0.01 ... 0.7 m |
| Light source: | LED, Red |
| Light spot size [at sensor distance]: | 5 mm x 5 mm |
| Protective circuit: | Polarity reversal protection, Short circuit protected |
| Supply voltage UB: | 10 ... 30 V, DC |
| Residual ripple: | 0 ... 15 %, From UB |
| Open-circuit current: | 0 ... 30 mA |
| Number of digital switching outputs: | 2 Piece(s) |
| Switching element: | Transistor, Push-pull |
| Switching principle: | Light switching (PNP)/dark switching (NPN) |
| Switching element: | Transistor, Push-pull |
| Switching principle: | Dark switching (PNP)/light switching (NPN) |
| Switching frequency: | 200 Hz |
| Response time: | 2.5 ms |
| Function: | Voltage supply, Signal IN, Signal OUT |
| Type of connection: | Connector |
| Thread size: | M12 |
| Material: | Plastic |
| No. of pins: | 4 -pin |
| Dimension (W x H x L): | 18.5 mm x 76.9 mm x 43.4 mm |
| Housing material: | Plastic, PC-ABS |
| Lens cover material: | Plastic |
| Net weight: | 50 g |
| Type of fastening: | Through-hole mounting |
| Compatibility of materials: | ECOLAB |
| Operational controls: | Multiturn potentiometer |
| Ambient temperature, operation: | -40 ... 60 °C |
| Degree of protection: | IP 67, IP 69K |
| Protection class: | II |
| Certifications: | c UL US |
| Standards applied: | IEC 60947-5-2 |
| Customs tariff number: | 85365019 |
| eCl@ss 8.0: | 27270904 |
| eCl@ss 9.0: | 27270904 |
| ETIM 5.0: | EC002719 |
| ETIM 6.0: | EC002719 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Deutschland |
| EAN: | |
| Weight: | 0.06 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
