50102956
TFM 03 5125.220

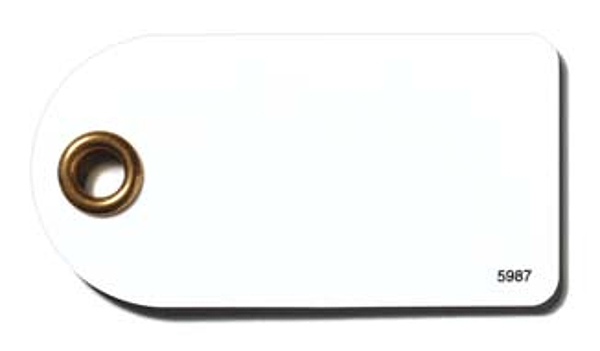

TFM 03 5125.220 - Transponder
Series: | TFM |
Suitable for: | RFM |
Chip: | TagIT HFI |
Working frequency: | 13.56 MHz |
Memory access: | Read/Write |
Memory size: | 256 B |
Memory block: | 32 Piece(s) |
Memory block size: | 8 B |
Storage time: | 50 ms |
Standards applied: | ISO 15693 |
Design: | Card |
Dimension (W x H x L): | 28 mm x 1 mm x 50 mm |
Housing material: | Plastic, PET |
Net weight: | 5 g |
Ambient temperature, operation: | -10 ... 50 °C |
Ambient temperature, storage: | -35 ... 50 °C |
Degree of protection: | IP 67 |
Customs tariff number: | 85235200 |
eCl@ss 8.0: | 27289290 |
eCl@ss 9.0: | 27280402 |
ETIM 5.0: | EC002996 |
ETIM 6.0: | EC002996 |
ECCN: | |
Country of Origin: | China |
EAN: | |
Weight: | 0.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
