50040498
RFM 32 SL 200

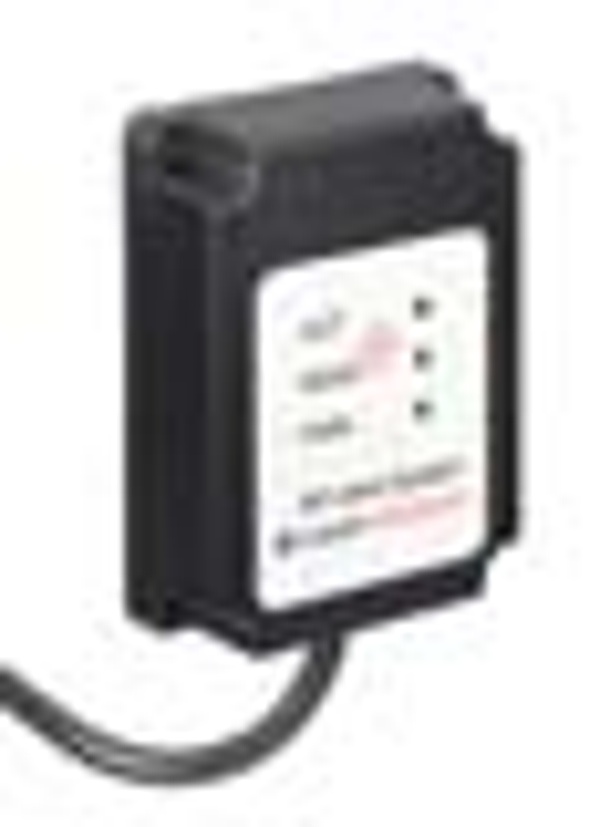

RFM 32 SL 200 - RFID read/write device
Series: | RFM |
Working frequency: | 13.56 MHz |
Functions: | I/O, Configurable operating modes, LED indicator, Reading gate control |
Reading/writing range, max.: | 110 mm |
Transponder, readable: | ICodeSLI, Infineon MyD, TagIT HFI |
Supply voltage UB: | 12 ... 30 V, DC |
Power consumption, max.: | 1.2 W |
Memory access: | Read/Write |
Transmission speed: | 4,000 Bd |
Number of digital switching inputs: | 1 Piece(s) |
Number of digital switching outputs: | 1 Piece(s) |
Type: | RS 232 |
Function: | Process |
Transmission speed: | 9,600 Bd |
Data format: | Fixed |
Start bit: | 1 |
Data bit: | 8 data bits |
Stop bit: | 1 stop bit |
Parity: | None |
Transmission protocol: | |
Number of connections: | 1 Piece(s) |
Function: | Signal OUT, Data interface, Signal IN, Voltage supply |
Type of connection: | Cable with socket connectors (10+6) |
Cable length: | 1,000 mm |
Design: | Cubic |
Dimension (W x H x L): | 76 mm x 30 mm x 102 mm |
Housing material: | Plastic, PC-ABS |
Net weight: | 346 g |
Housing color: | Black |
Type of fastening: | Through-hole mounting |
Ambient temperature, operation: | -25 ... 65 °C |
Ambient temperature, storage: | -40 ... 70 °C |
Relative humidity (non-condensing): | 5 ... 90 % |
Degree of protection: | IP 67 |
Customs tariff number: | 84719000 |
eCl@ss 8.0: | 27280401 |
eCl@ss 9.0: | 27280401 |
ETIM 5.0: | EC002998 |
ETIM 6.0: | EC002998 |
ECCN: | |
Country of Origin: | Deutschland |
EAN: | |
Weight: | 0.46 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
