Leuze electronic
50036186
MA 2 L
Request a Quote
Image copyright: Leuze electronic

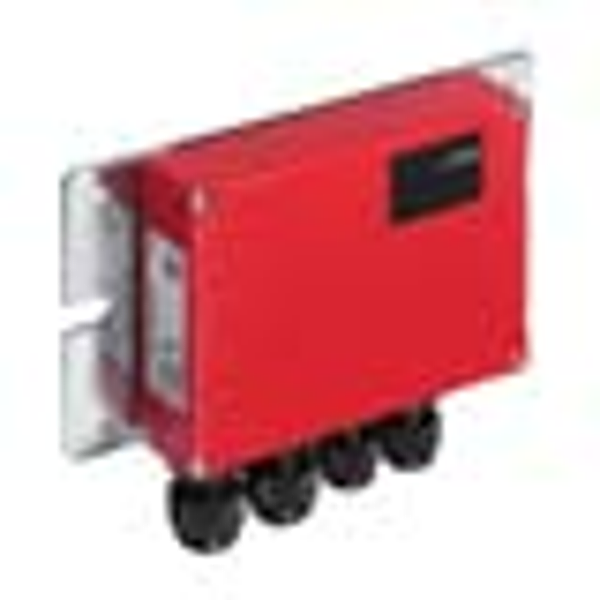

Leuze electronic 50036186
MA 2 L
MA 2 L - Connection unit
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Series: | MA 2 |
| Suitable for: | BCL 2x series bar code readers, BCL 3x series bar code readers |
| Type: | RS 232, RS 485 |
| Number of connections: | 3 Piece(s) |
| Function: | Data interface, PWR / SW IN / OUT |
| Type of connection: | Terminal |
| No. of pins: | 24 -pin |
| Function: | Connection to device |
| Type of connection: | Sub-D |
| No. of pins: | 15 -pin |
| Function: | Service interface |
| Type of connection: | Sub-D |
| Dimension (W x H x L): | 118 mm x 78.5 mm x 130 mm |
| Housing material: | Metal, Diecast aluminum |
| Net weight: | 660 g |
| Ambient temperature, operation: | -10 ... 50 °C |
| Ambient temperature, storage: | -20 ... 60 °C |
| Relative humidity (non-condensing): | 90 % |
| Customs tariff number: | 84735080 |
| eCl@ss 8.0: | 27069190 |
| eCl@ss 9.0: | 27069190 |
| ETIM 5.0: | EC001578 |
| ETIM 6.0: | EC001578 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Deutschland |
| EAN: | |
| Weight: | 0.66 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
