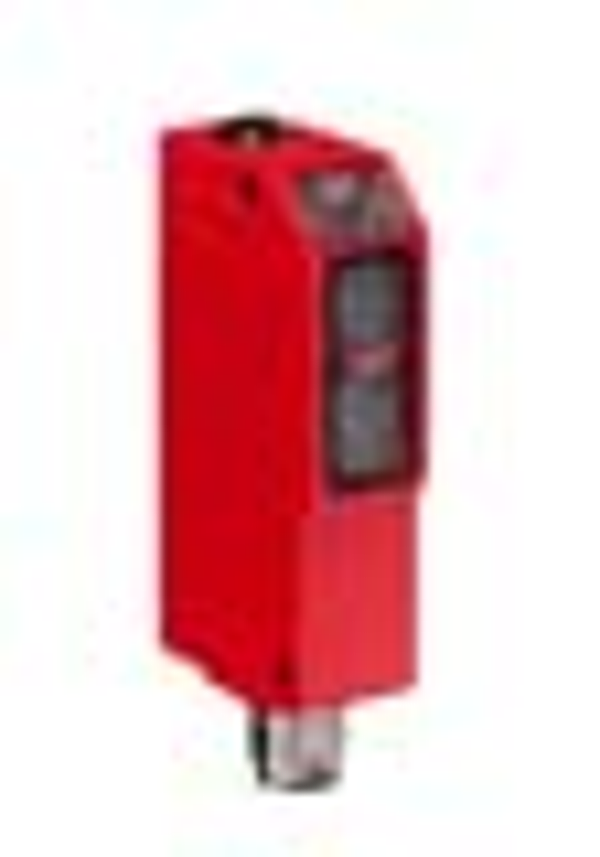

Leuze electronic 50034514
FRKR 95/44-350 L
FRKR 95/44-350 L - Diffuse sensor with background suppression
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Series: | 95 |
| Operating principle: | Diffuse reflection principle with background suppression |
| Operating range, white 90%: | 0.005 ... 0.35 m |
| Operating range, gray 18%: | 0.02 ... 0.328 m |
| Operating range, black 6%: | 0.025 ... 0.3 m |
| Operating range limit, white 90%: | 0.005 ... 0.5 m |
| Operating range limit, gray 18%: | 0.02 ... 0.44 m |
| Operating range limit, black 6%: | 0.025 ... 0.35 m |
| Light source: | LED, Red |
| Protective circuit: | Polarity reversal protection, Short circuit protected |
| Supply voltage UB: | 10 ... 30 V, DC |
| Residual ripple: | 0 ... 15 %, From UB |
| Open-circuit current: | 0 ... 35 mA |
| Number of digital switching outputs: | 2 Piece(s) |
| Switching element: | Transistor, PNP |
| Switching principle: | Light switching |
| Switching element: | Transistor, PNP |
| Switching principle: | Dark switching |
| Switching frequency: | 1,000 Hz |
| Response time: | 0.5 ms |
| Function: | Voltage supply, Signal OUT |
| Type of connection: | Connector |
| Thread size: | M12 |
| Material: | Stainless steel |
| No. of pins: | 4 -pin |
| Dimension (W x H x L): | 17 mm x 66 mm x 35 mm |
| Housing material: | Metal, Zinc |
| Lens cover material: | Glass |
| Net weight: | 90 g |
| Type of fastening: | Through-hole mounting |
| Operational controls: | Multiturn potentiometer |
| Ambient temperature, operation: | -25 ... 60 °C |
| Degree of protection: | IP 67 |
| Protection class: | II |
| Standards applied: | IEC 60947-5-2 |
| Customs tariff number: | 85365019 |
| eCl@ss 8.0: | 27270904 |
| eCl@ss 9.0: | 27270904 |
| ETIM 5.0: | EC002719 |
| ETIM 6.0: | EC002719 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Deutschland |
| EAN: | |
| Weight: | 0.09 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
