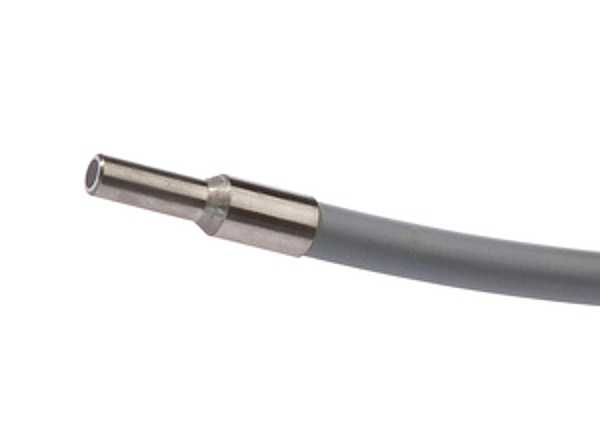

LT120381
Version: | Diffuse reflection sensor-color sensors |
Fiber diameter: | 2.5mm |
Number of fibers: | 1 |
Fiber optics core material: | Glass |
End piece length: | 35mm |
Metric thread size of end piece: | 18mm |
Bendable: | no |
Fiber optic with bendable head: | no |
Light exit diameter: | 2.5 |
Sensing head diameter 1: | 4.5 |
Sensing head material: | Stainless steel |
Overall length: | 1200mm |
Design: | Cylinder plain |
Ambient temperature: | -40 - 180°C |
Sheathing material: | Silicone |
Sensing head diameter: | 4.5mm |
End piece diameter: | 22mm |
End piece thread pitch: | 1mm |
Fiber optic with small bending radius: | no |
Fiber optic cable diameter: | 5.8 |
Sensing head diameter 2: | 6.6 |
End piece material: | Plastic |
Short-circuit protection: | no |
Sensing head length: | 24mm |
Light exit: | Axial |
Reverse polarity protection: | no |
Bending angle of the sensing head: | 0° |
Bending section of the sensing head: | 0mm |
Fiber optic for attachment optics: | no |
Fiber optic with coaxial structure: | no |
Fiber optic with linear light beam: | no |
eClass 7.0: | 27270905 |
eClass 7.1: | 27270905 |
eClass 8.0: | 27270905 |
eClass 9.0: | 27270905 |
eClass 9.1: | 27270905 |
ETIM-6.0: | EC002651 |
ETIM-7.0: | EC002651 |
IPF Product Group: | 154 |
shipping weight: | 0.1kg |
packaging dimensions: | 77.0mm x 25.0mm x 123.0mm |
customs tariff number: | 90011090 |
