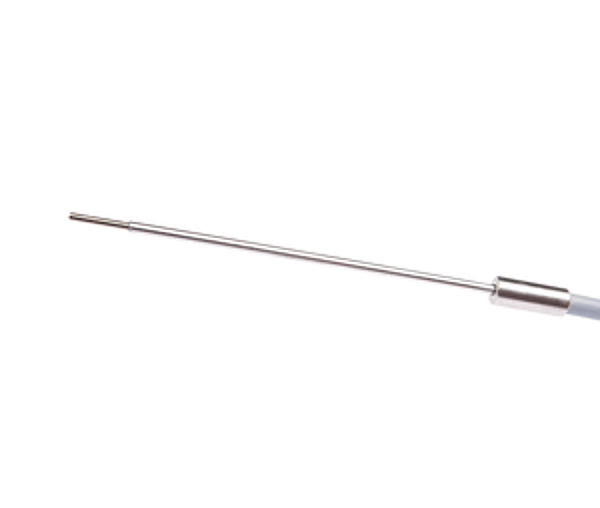

LT100103
Version: | Reflection sensor |
Fiber diameter: | 0.7mm |
Number of fibers: | 1 |
Fiber optics core material: | Glass |
Sheathing material: | Silicone |
Sensing head diameter: | 1.5mm |
End piece diameter: | 20mm |
End piece thread pitch: | 1mm |
Fiber optic with small bending radius: | no |
Bending radius (fixed): | 15mm |
Fiber optic cable diameter: | 4.2 |
Sensing head diameter 2: | 6 |
End piece material: | Brass |
Overall length: | 1000mm |
Design: | Cylinder plain |
Ambient temperature: | -40 - 180°C |
Degree of protection (IP): | IP67 |
End piece length: | 28mm |
Metric thread size of end piece: | 18mm |
Bendable: | yes |
Fiber optic with bendable head: | yes |
Bending radius (flexible): | 30mm |
Bending radius of the sensing head: | 10 |
Sensing head diameter 1: | 1.5 |
Sensing head material: | Stainless steel |
Short-circuit protection: | no |
Reverse polarity protection: | no |
Bending angle of the sensing head: | 0° |
Bending section of the sensing head: | 55mm |
Max. switching distance: | 10mm |
Sensing head length: | 95mm |
Light exit: | Axial |
Nominal operating distance: | 10mm |
Fiber optic with linear light beam: | no |
Fiber optic for attachment optics: | no |
Fiber optic with coaxial structure: | no |
eClass 7.0: | 27270905 |
eClass 7.1: | 27270905 |
eClass 8.0: | 27270905 |
eClass 9.0: | 27270905 |
eClass 9.1: | 27270905 |
ETIM-6.0: | EC002651 |
ETIM-7.0: | EC002651 |
IPF Product Group: | 150 |
shipping weight: | 0.08kg |
packaging dimensions: | 124.0mm x 28.0mm x 149.0mm |
customs tariff number: | 90011090 |
Zolltarifnummer: | 90011090 |
