IN344107

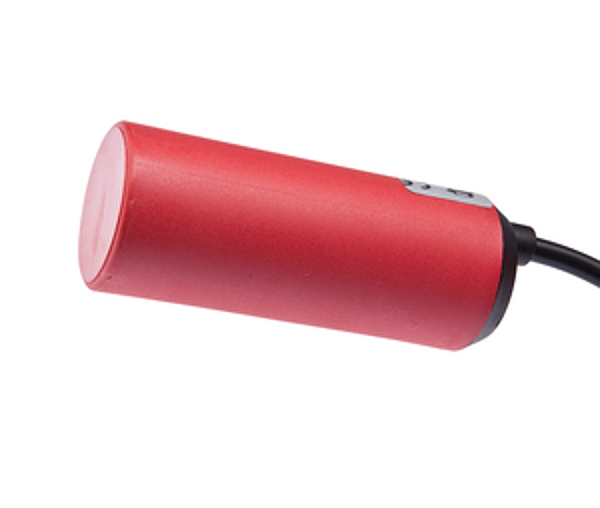

Sensor inductive, Ø34mm 85long, Non-flush, Sn: 20, 20-250V AC, Two-wire NO, Cable 2m PVC, IP67, PBT
Inductive sensors. Inductive proximity switches are contact-free sensors. They detect all conductive metals, regardless of whether they move or not. The achievable sensing range of the devices depends on the object material and its dimensions. The vibration-resistant sensors can be approached laterally or frontally. Inductive proximity switches are used for presence detection (e.g. goods carriers), positioning (e.g. dampers), counting (e.g. nuts /bolts), speed detection (e.g. for cog wheels), on conveyor systems (e.g. hose feedings) or distance measurements (e.g. press-in checking) of metallic objects.
Cable infeed: | Axial |
Cable length: | 2m |
Housing material: | PBT |
Ambient temperature: | -25 - 70°C |
Active area material of sensor: | PBT |
Degree of protection (IP): | IP67 |
Sensor diameter: | 34mm |
Alignment of cable entry: | Axial |
Design: | Cylinder plain |
Number of cores: | 2 |
Mechanical mounting condition for sensor: | Non-flush |
Material of cable sheath: | PVC |
Pressure-proof: | no |
Sensor length: | 85mm |
Voltage type: | AC |
Switching frequency: | 10Hz |
Type of electrical connection: | Cable |
Type of switching function: | Normally open contact |
Rated switching current: | 400mA |
Cascadable: | no |
Switching distance: | 20mm |
Type of switching output: | Two-wire |
Supply voltage: | 20 - 250V |
eClass 7.0: | 27270101 |
eClass 7.1: | 27270101 |
eClass 8.0: | 27270101 |
eClass 9.0: | 27270101 |
eClass 9.1: | 27270101 |
ETIM-6.0: | EC002714 |
ETIM-7.0: | EC002714 |
IPF Product Group: | 203 |
shipping weight: | 0.27kg |
packaging dimensions: | 74.0mm x 74.0mm x 143.0mm |
customs tariff number: | 85365080 |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
