FK914100

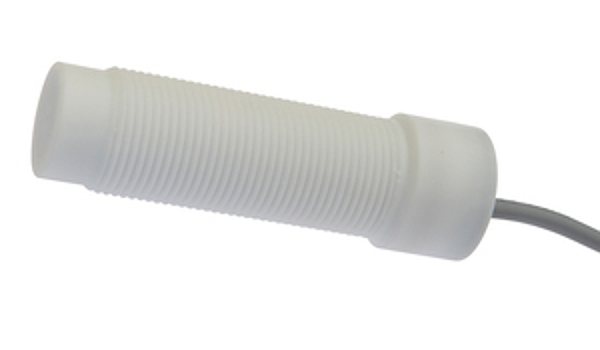

Sensor filling level, Capacitive, 3/4 inch 95long, G3/4 inch, 20-250V AC, Two-wire NO, Cable 2m PVC, IP67, PTFE, probe Ø26mm 10long, Manual adjustment
Filling level and level sensors operate according to different measuring principles. The selection of the sensor depends on the medium to be detected and the ambient conditions. The material flow in a vibratory bowl can be excellently queried with inductive filling level sensors whose pendulum is moved by the material in the pot. The detection of liquid or solid media is, for instance, possible with capacitive filling level sensor technology. These work according to the principle of the condensator, the medium changes the dielectricity between two electrodes. The resulting change is converted into a digital output signal. A further alternative for the detection of filling levels of conductive media is provided by conductive filling level relays. The resistance between reference and measuring electrode is determined. If a set threshold is exceeded, a relay output switches.
Wire cross section: | 0.5mm² |
Cable length: | 2m |
Housing material: | PTFE |
Ambient temperature: | -25 - 75°C |
Material of cable sheath: | PVC |
Type of process connection: | G3/4 inch |
Medium temperature: | -25 - 75°C |
Probe length: | 10mm |
Thread length: | 65mm |
Design: | Cylinder, screw-thread |
Number of cores: | 2 |
Thread size, inches: | 3/4 inch |
Degree of protection (IP): | IP67 |
Sensor length: | 95mm |
Sensing element material: | PTFE |
Probe diameter: | 26mm |
Switching frequency: | 10Hz |
Type of switching output: | Two-wire |
Rated control supply voltage Us at AC 50HZ: | 20 - 250V |
No-load current: | 2.5mA |
Physical measurement principle: | Capacitive |
Number of contacts as normally open contact: | 1 |
Type of electrical connection: | Cable |
Type of switching function: | Normally open contact |
Setting procedure: | Manual adjustment |
Rated switching current: | 400mA |
Voltage type for actuation: | AC |
Voltage drop: | 8V |
eClass 7.0: | 27371813 |
eClass 7.1: | 27371813 |
eClass 8.0: | 27371813 |
eClass 9.0: | 27371813 |
eClass 9.1: | 27371813 |
ETIM-6.0: | EC001447 |
ETIM-7.0: | EC001447 |
IPF Product Group: | 350 |
shipping weight: | 0.19kg |
packaging dimensions: | 76.0mm x 50mm x 121.0mm |
customs tariff number: | 85365019 |
