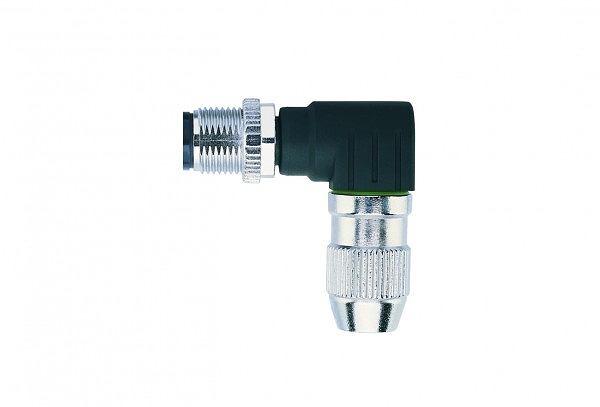

Image copyright: Escha
Escha 8019717
WWASC4S
M12 male, angled, field-wireable, 4 poles, A-coded, insulation displacement contact, 32V, 4A
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Connector: | male, angled, M12 |
| Number of pins: | 4 |
| Coding: | A |
| Rated voltage: | 32V |
| Resistance (mΩ): | 10 |
| Current load (at 40°C): | 4 |
| Insulation resistance (Ω): | ≥10 8 |
| Cable outlet: | 4...5,1mm |
| Connecting cross-section: | max. 0.5 mm² |
| Ambient temperature product: | -40°C...+85°C |
| Contact material: | Metal, brass, gold-plated |
| Grip body material: | Plastic, PA, BK |
| Contact-carrier material: | Plastic, PA, BK |
| Connecting type: | Insulation displacement contact |
| Standards: | IEC 61076-2-101 |
| Degree of protection (mounted): | IP67 |
| Mechanical life-cycle: | >100 mating cycles |
| Degree of pollution: | 3 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Deutschland |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
