Product
Escha
8017222
MKCU19.003-10/S370
Request a Quote

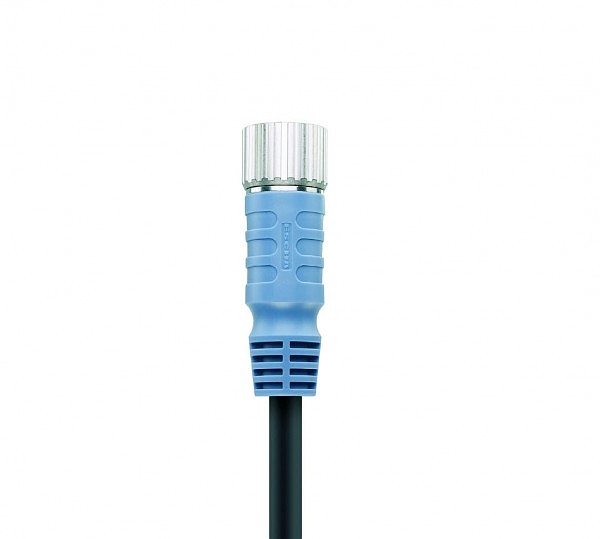

Image copyright: Escha
Escha 8017222
MKCU19.003-10/S370
M23 female, straight, 19 poles
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Flexible, silicone- and halogen-free control line with high mechanical strength. The cable is chemicals, hydrolysis-, and microbes- resistant. The drag-chain application is possible at a bending radius of minimum 10 x d. Due to its weld-field immunity, the cable is very well suited for the flexible application in robotics, machine-tool, and metal-cutting production. The cables meet the UL and CSA (UL10493/20549; cULus) requirements.
Downloads
Technical parameters
| Connector: | female, straight, M23 |
| Number of pins: | 19 |
| Pin assignment: | 1 VT, 2 RD, 3 GY, 4 RDBU, 5 GN, 6 BU, 7 GYPK, 8 WHGN, 9 WHYE, 10 WHGY, 11 BK, 12 GNYE, 13 YEBN, 14 BNGN, 15 WH, 16 YE, 17 PK, 18 GYBN, 19 BN |
| Rated voltage: | 125V |
| Current load power: | ≥10 8 |
| Wire colors: | VT, RD, GY, GN, BK, WH, PK, YE, RDBU, GYPK, WHGN, WHYE, WHGY, YEBN, BNGN, GYBN, BN, BU, GNYE |
| Insulation resistance (Ω): | Metal, CuZn, gold-plated |
| Ambient temperature product: | Plastic, TPU, BU |
| Halogen-free: | Yes |
| Grip body material: | Metal, CuZn, nickel-plated |
| Contact-carrier material: | IP65, IP67 |
| Coupling nut material: | >100 mating cycles |
| Degree of protection (mounted): | open cable end |
| Mechanical life-cycle: | 3 |
| Endenkonfektion: | offenes Kabelende |
| Verschmutzungsgrad: | 3 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Deutschland |
| EAN: | |
| Weight: | 1.47 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
