Escha
8008157
SESP3SL
Request a Quote
Image copyright: Escha
Escha 8008157
SESP3SL

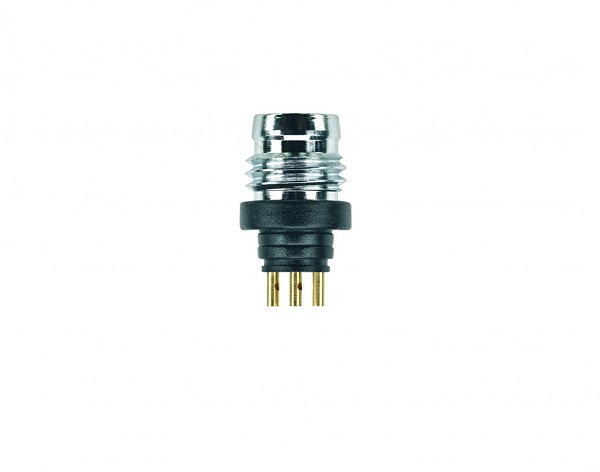

Receptacle, Ø8mm snap male, straight, soldering contact, 3 poles
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Connector: | male, M8/Ø8mm snap |
| Number of pins: | 3 |
| Pin assignment: | 1 BN, 3 BU, 4 BK |
| Rated voltage: | 60V |
| Current load (at 40°C): | 4 |
| Insulation resistance (Ω): | ≥108 |
| Ambient temperature product: | -30°C...+90°C |
| Contact material: | Metal, CuZn, gold-plated |
| Contact-carrier material: | Plastic, PA, BK |
| Connecting type: | Soldering contact |
| Standards: | IEC 61076-2-104 |
| Degree of protection (mounted): | IP65, IP67 |
| Mechanical life-cycle: | >100 mating cycles |
| Degree of pollution: | 3/2 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Deutschland |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
