Escha 8008080
FKM4-2ESP3S

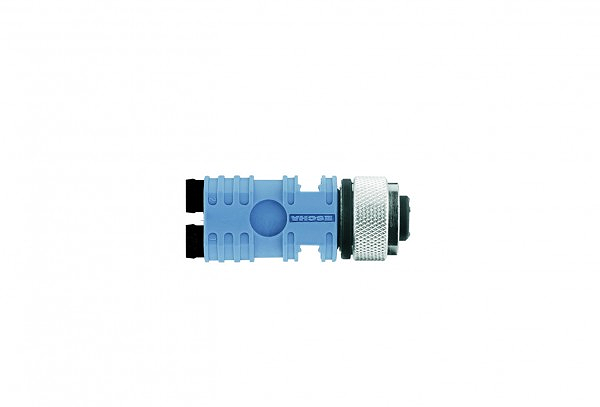

Y-splitter, M12 female, 4 poles, A-coded, Ø8mm snap male, 3 poles, Ø8mm snap male, 3 poles
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Exit: | female, M12 |
| Contact material: | Metal, CuZn, gold-plated |
| Contact-carrier material: | Plastic, TPU, BK |
| Coupling nut material: | Metal, CuZn, nickel-plated |
| Rated voltage: | 60V |
| Coding: | A |
| Number of pins: | 4 |
| Current load (at 40°C): | 4 |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Standards: | IEC 61076-2-101/-104 |
| Insulation resistance (Ω): | ≥10 8 |
| Ambient temperature product: | -30°C...+90°C |
| Grip body material: | Plastic, TPU, BK |
| Mechanical life-cycle: | >100 mating cycles |
| Degree of pollution: | 3 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Deutschland |
| EAN: | |
| Weight: | 0.02 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
