6084847
DMV-3150/3N/M6/2HI11/K6-PG

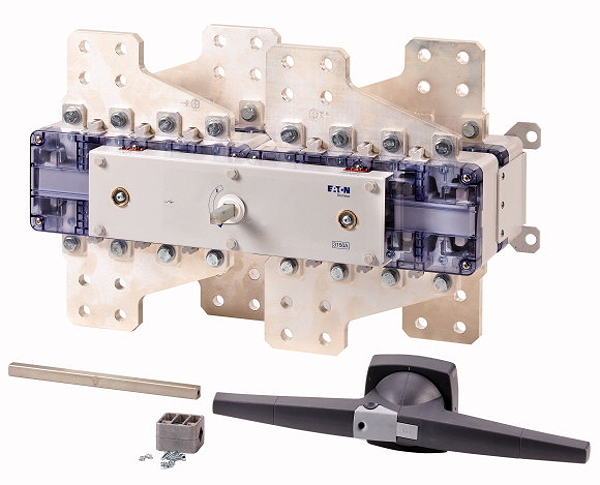

Switch-disconnector, DMV, 3150 A, 3P + N (solid), 2 N/O, 2 N/C, With gray rotary handle and drive shaft
Switch-disconnector, Product range: Switch-disconnector, Main switch, maintenance switch, Part group reference: DMV, With gray rotary handle and drive shaft, Notes: visible contacts, Information about equipment supplied: including connection materials, 3 pole + N, Degree of Protection: IP00, IP20 with terminal cover, Design: surface mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 1400 kW, Rated uninterrupted current: Iu = 3150 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3
ECCN: | |
Country of Origin: | GB |
EAN: | |
Weight: | 39.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
