290194
T3-2-15907/I2

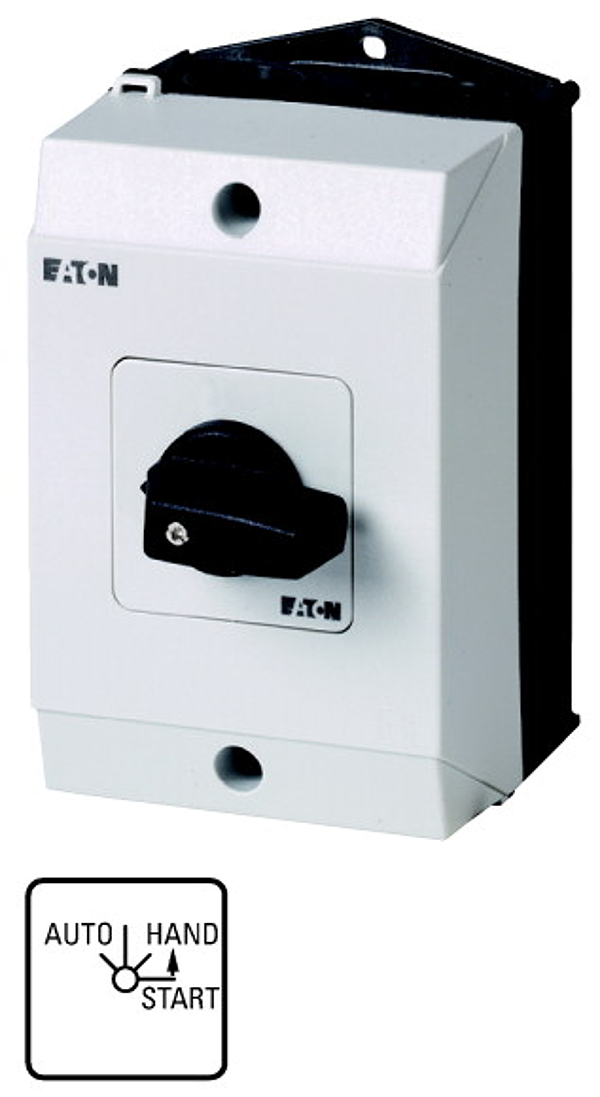

Changeoverswitches, T3, 32 A, surface mounting, 2 contact unit(s), Contacts: 4, 45 °, momentary/maintained, With 0 (Off) position, With spring-return to MANUAL, AUTO-0-HAND
Changeover switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T3, with black thumb grip and front plate, Contacts: 4, Degree of Protection: IP65, Design: surface mounting, Switching angle: 45 °, Switching performance: momentary/maintained, With 0 (Off) position, With spring-return to MANUAL, 2 contact unit(s), Rated uninterrupted current: Iu= 32 A, front plate: AUTO-0-HAND
ECCN: | |
Country of Origin: | GB |
EAN: | |
Weight: | 0.36 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
