289970
BPZ-KB-6/160

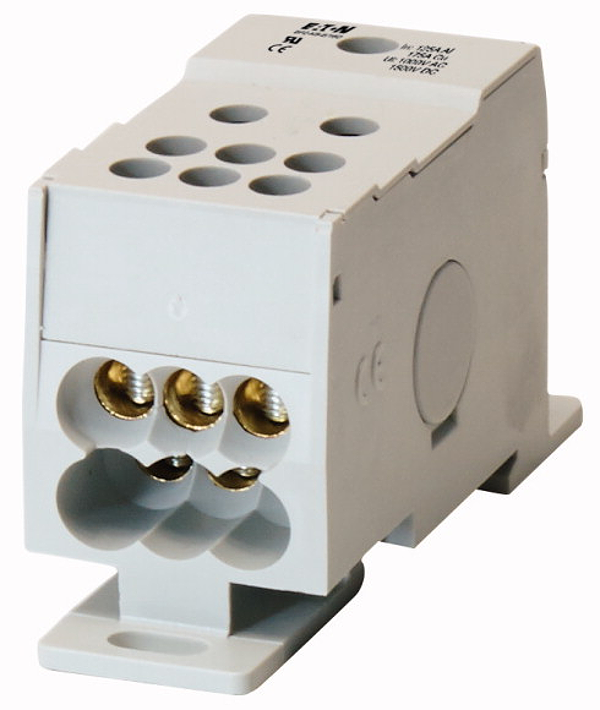

Terminal block 1 pole, 160A, 6 output terminals
EL-Nummer (Norway). 2456094. 1-pole terminal block, BPZ-KB, rated operational current 160 A, for copper conductor. Mounting on DIN-rail or mounting plate, UL-listed, makes wiring less time-consuming, ca. 80% less space is required.Module design, 1-pole to 4-pole systems can be assembled by using multiple blocks. Degree of protection IP20, max. operational voltage 1000 V AC , 1500 VDC. Equipment supplied: 1 1 pole terminal block
ECCN: | |
Country of Origin: | FR |
EAN: | |
Weight: | 0.25 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
